HB-DJ802

Summary: Model: HB-DJ802 Rated load: 3200-12000N optional; No-load speed: 6.5-38mm/s; Input voltage: 12, 24, 36, 48V DC optional; Customized stroke: ≤1000mm recommended; Duty cycle: 25%; Operating temperature: -40℃-65℃ Signal feedback: Limit switch signal, Hall sensor, potentiometer, magnetic switch are optional

Keywords:

HB-DJ802

Belongs to category:

Industrial

Inquiry:

media@wxhongba.com

Product Message

Product overview
Parameter

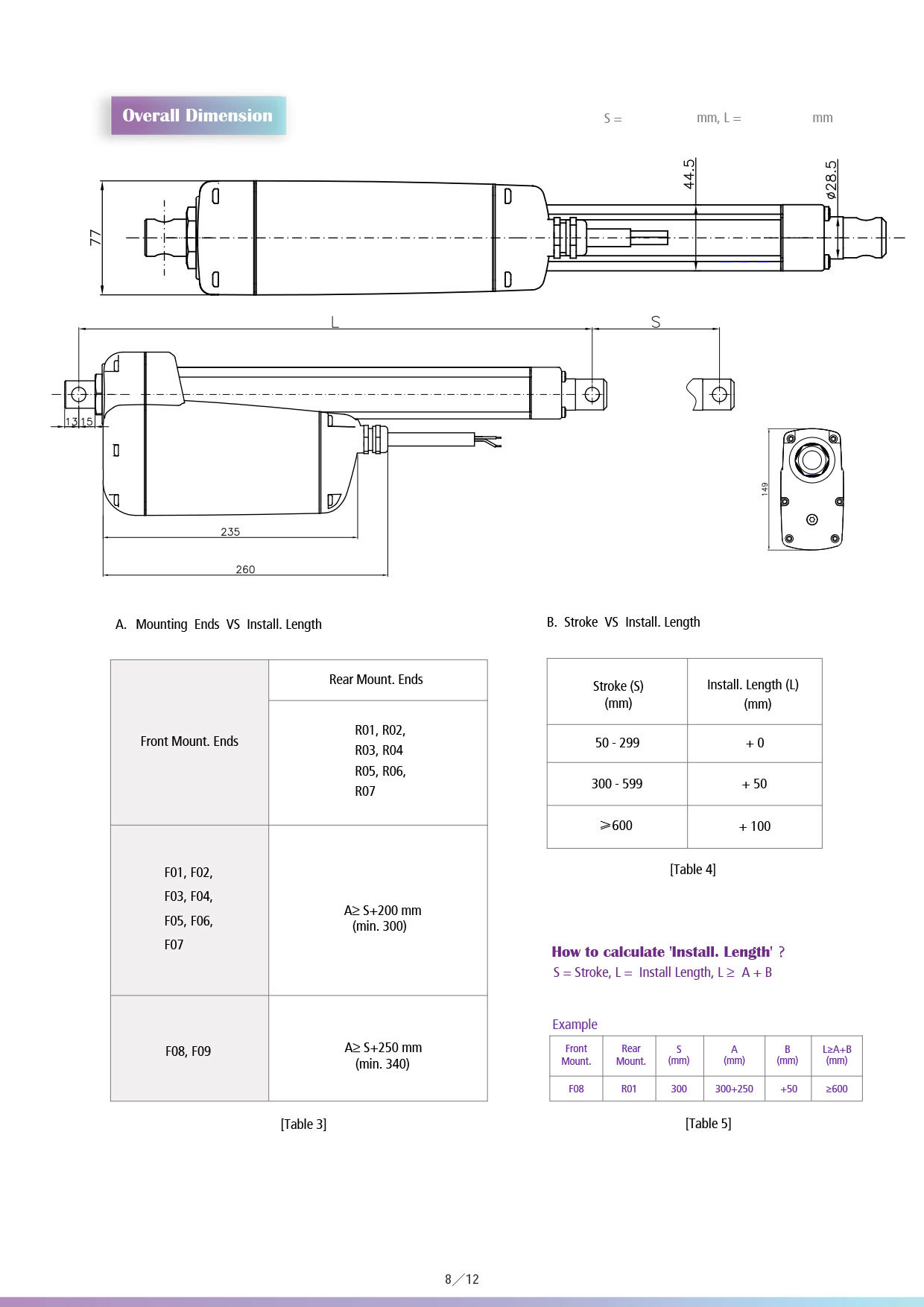

3D drawing
Download

- Commodity name: HB-DJ802
- Commodity ID: 8986756
Model: HB-DJ802 Rated load: 3200-12000N optional; No-load speed: 6.5-38mm/s; Input voltage: 12, 24, 36, 48V DC optional; Customized stroke: ≤1000mm recommended; Duty cycle: 25%; Operating temperature: -40℃-65℃ Signal feedback: Limit switch signal, Hall sensor, potentiometer, magnetic switch are optional

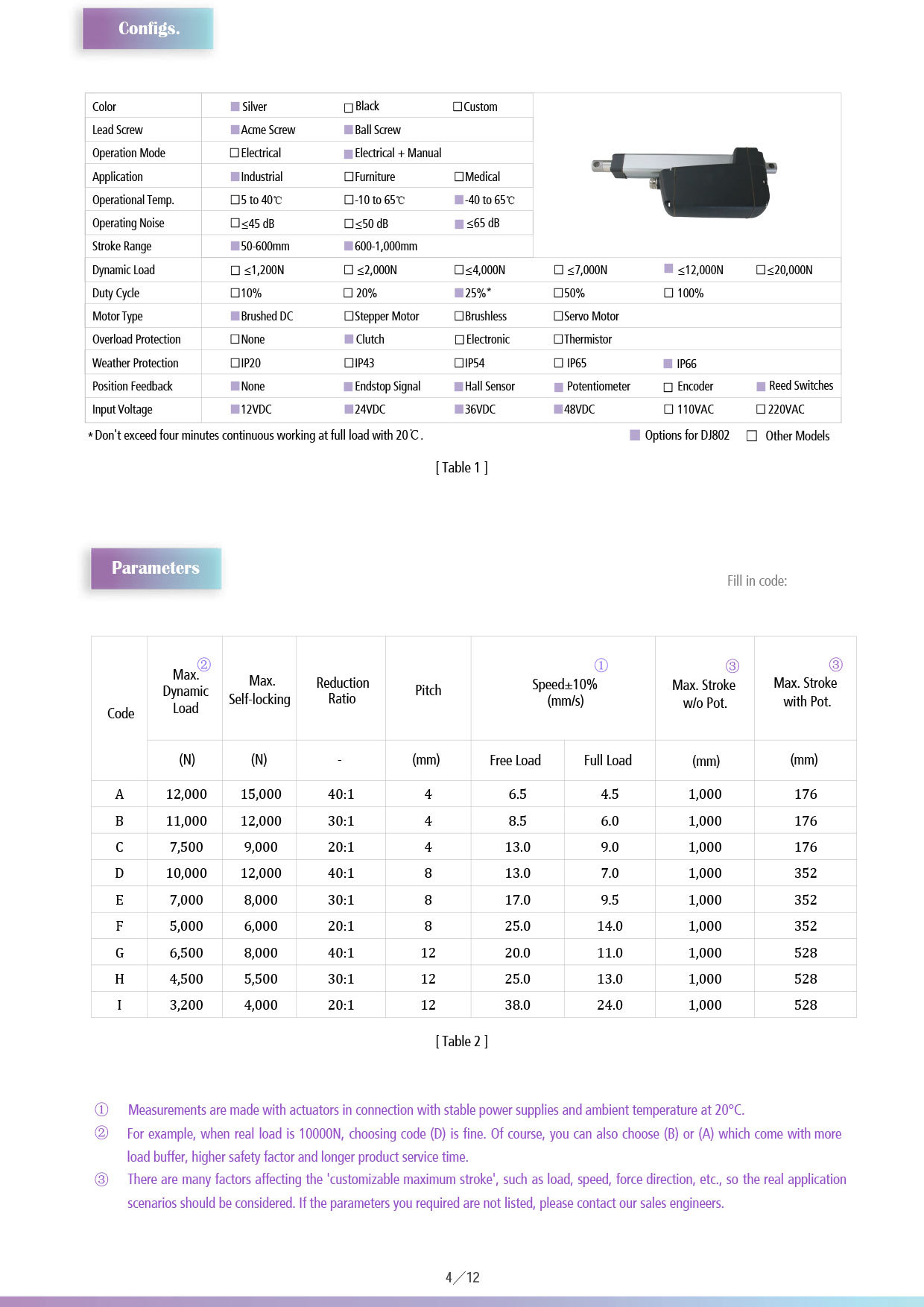

Model: HB-DJ802
Rated load: 3200-12000N optional;
No-load speed: 6.5-38mm/s;
Input voltage: 12, 24, 36, 48V DC optional;
Customized stroke: ≤1000mm is recommended;
Duty cycle: 25%;
Operating temperature: -40℃-65℃

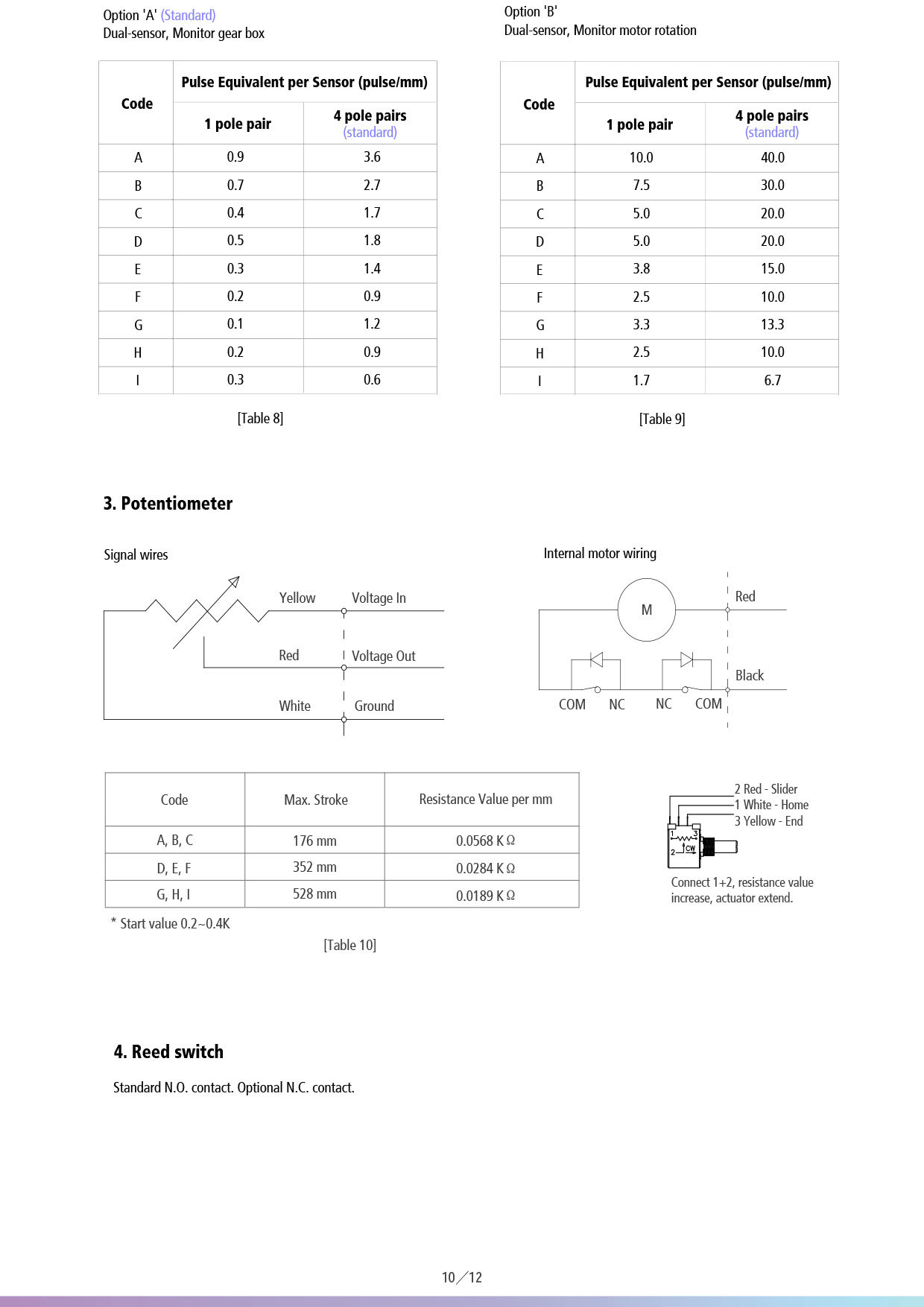

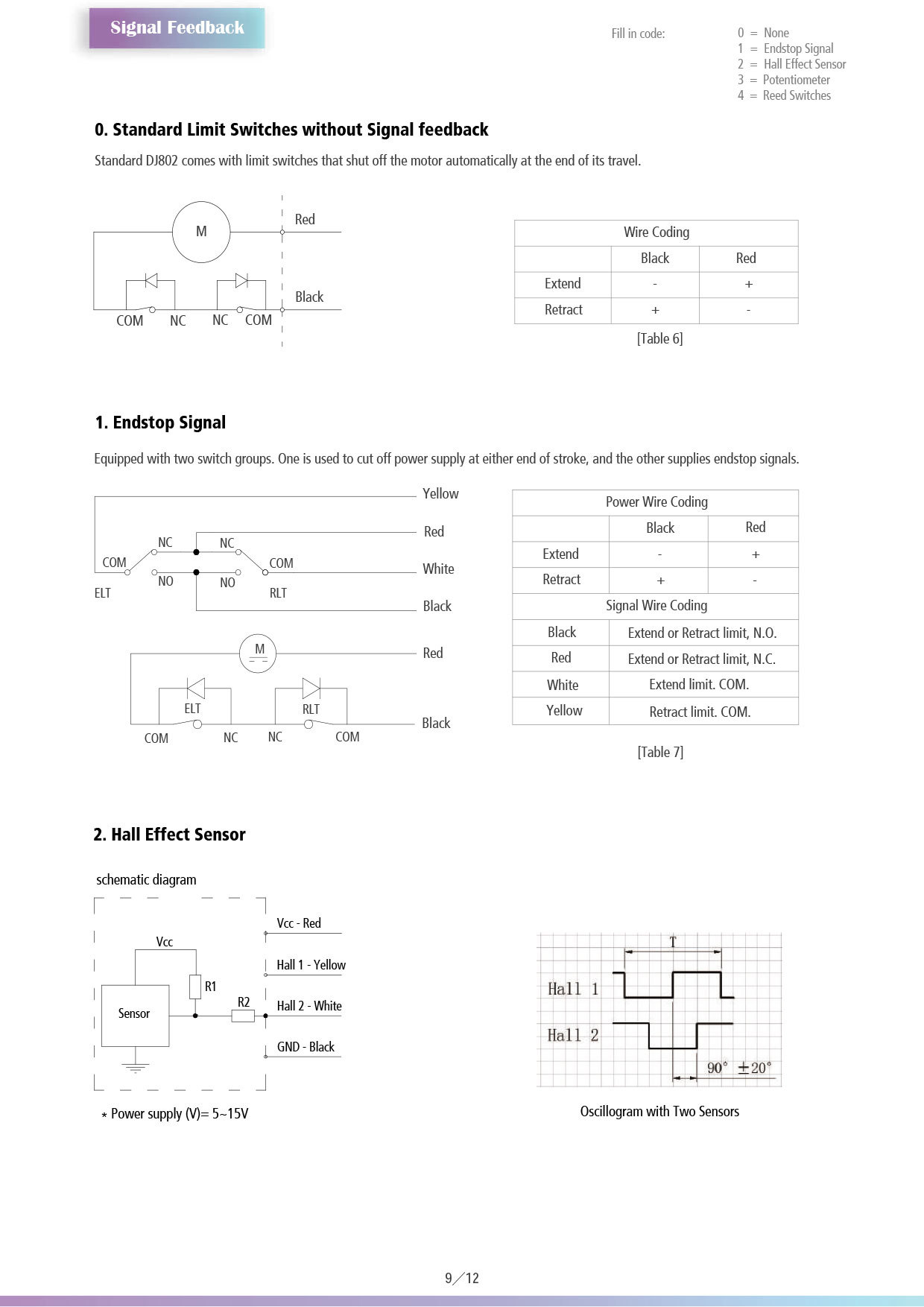

Signal feedback: Limit switch signal, Hall sensor, potentiometer, magnetic switch are optional
HB-DJ802

Product Message

Our team is happy to help you with project initiation and other technical information.
