HB-DJ830G Linear Actuator(Free 3D Prints)
No-load speed: 6.7–66.7 mm/s;
Input voltage: 12 V, 24 V, 36 V, or 48 V DC, selectable;
Customized travel itinerary: recommended ≤1000 mm;
Duty cycle: 20%–30%;
Operating temperature: -10°C to 65°C (optional ultra-low-temperature protection down to -40°C);
Signal Feedback: Optional configurations include limit switches, Hall sensors, potentiometers, magnetic switches, and manual adjustment of overcurrent protection.
Keywords:
HB-DJ830G Linear Actuator(Free 3D Prints)
- Product overview

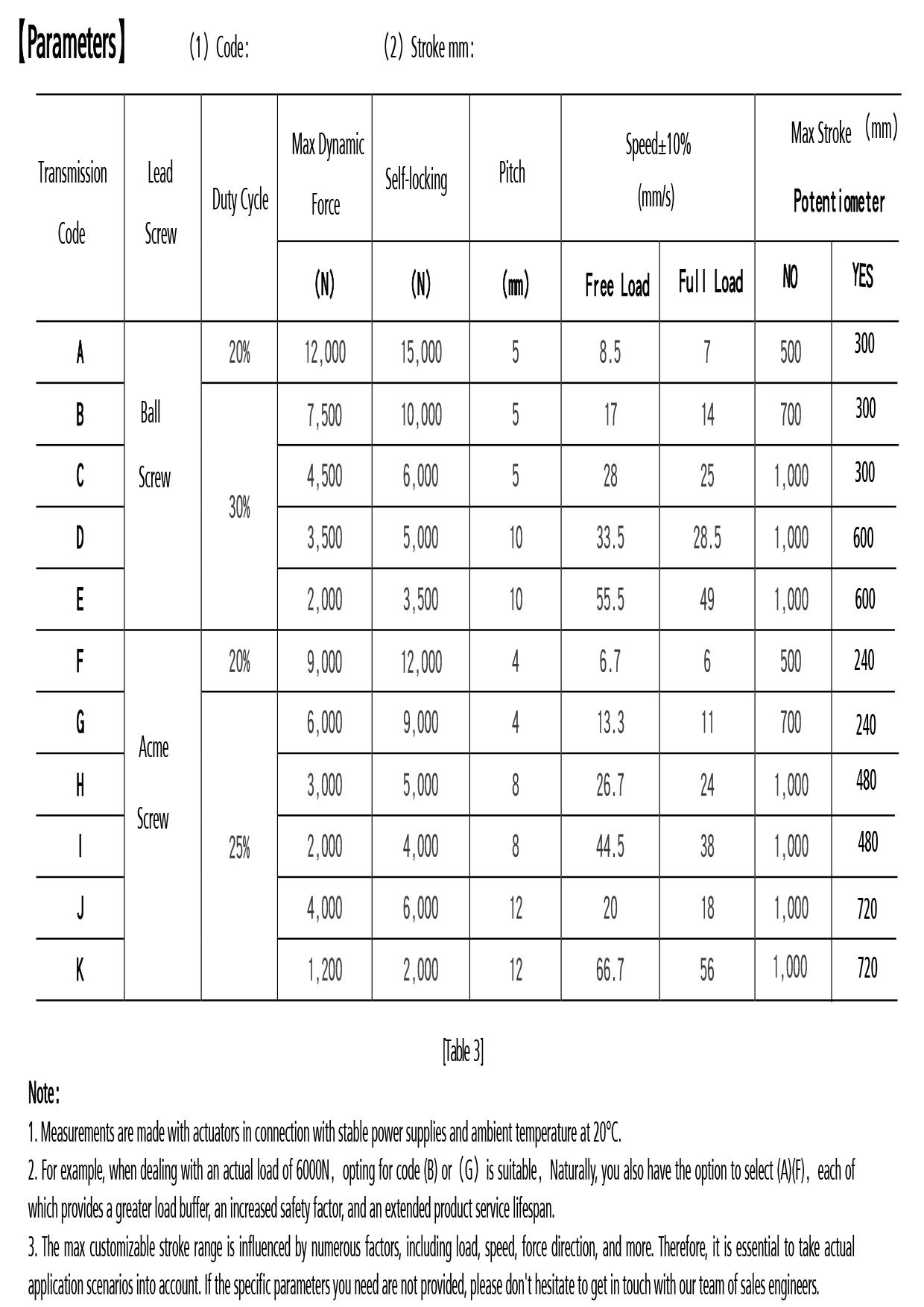

- Parameter

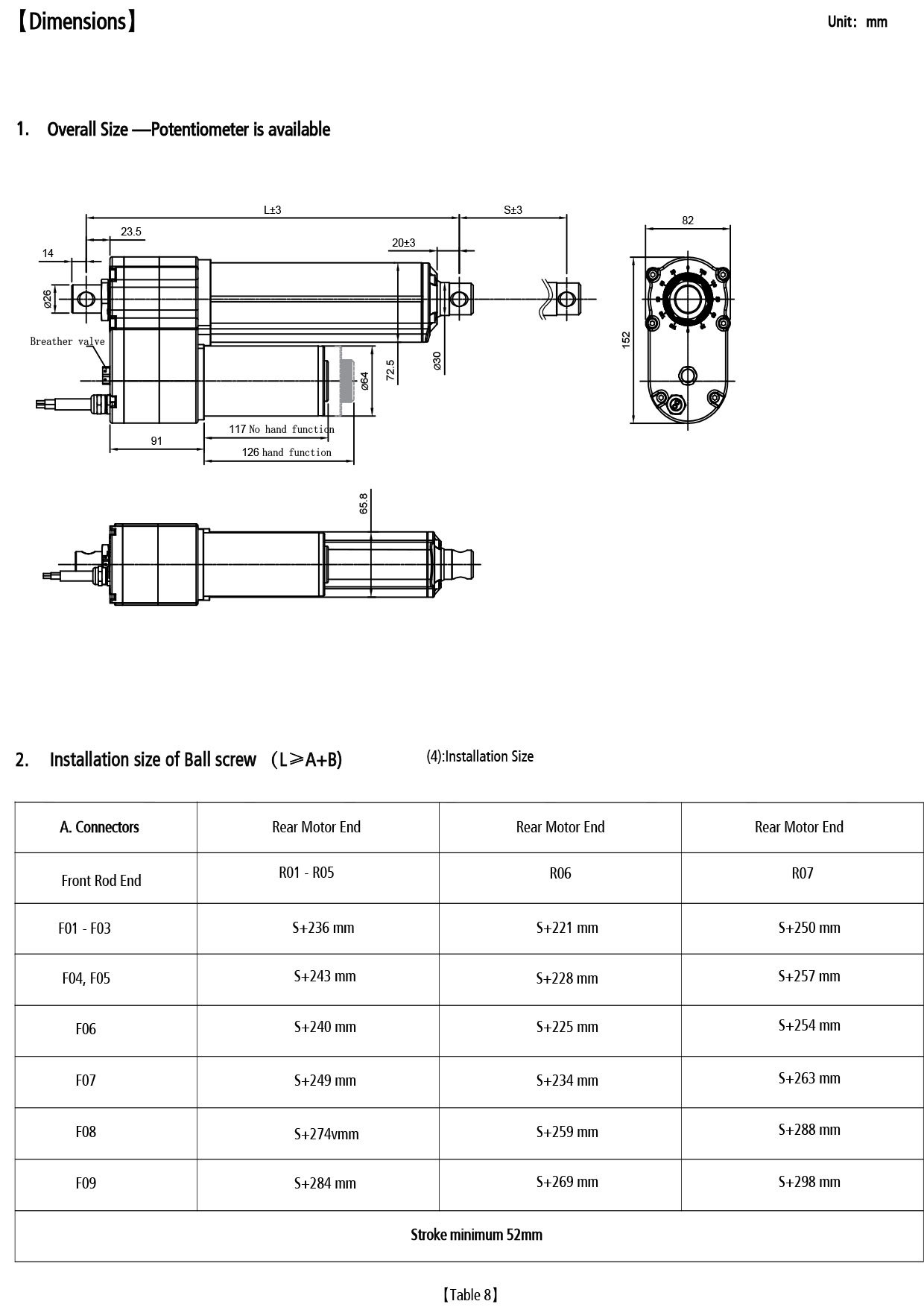

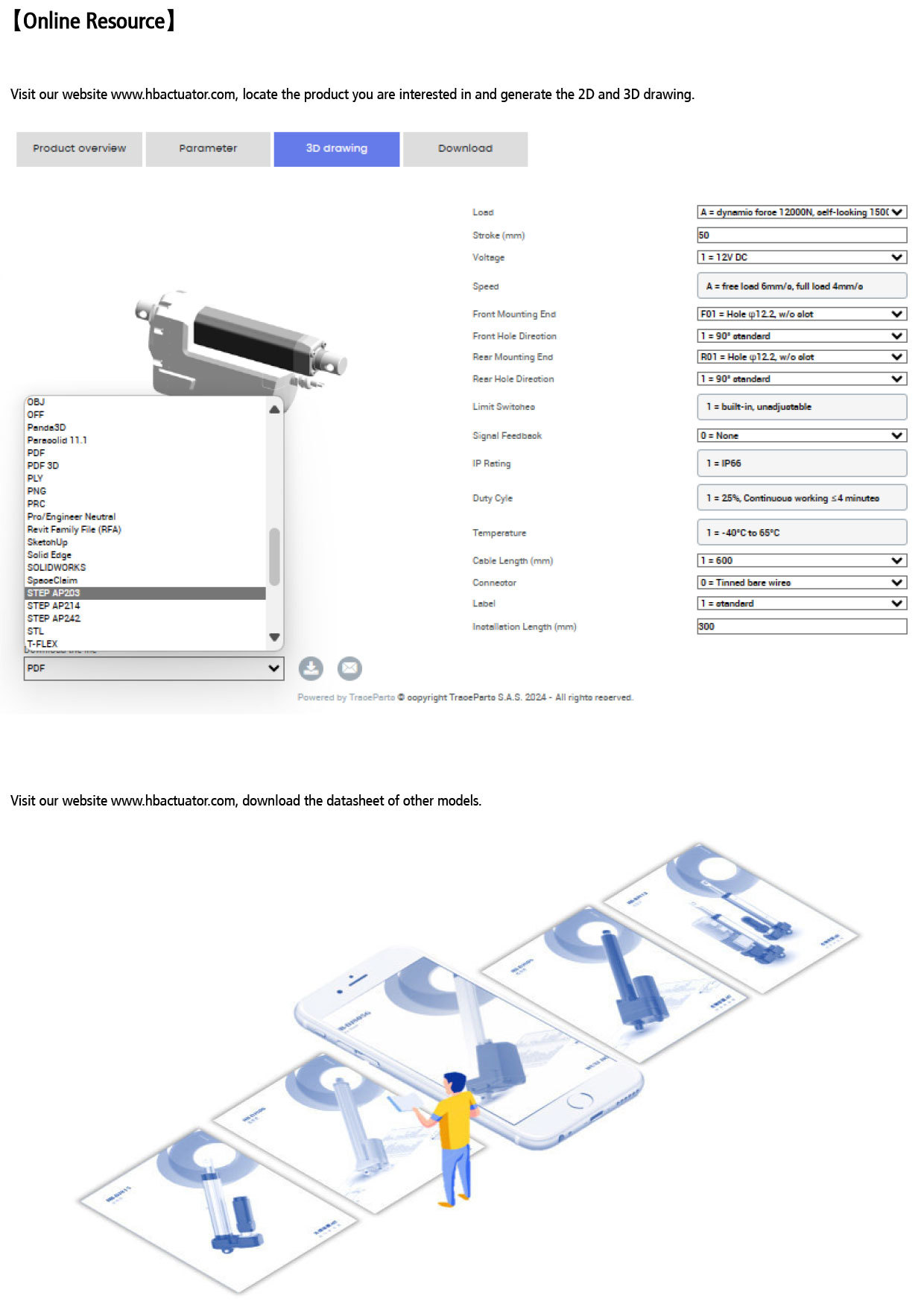

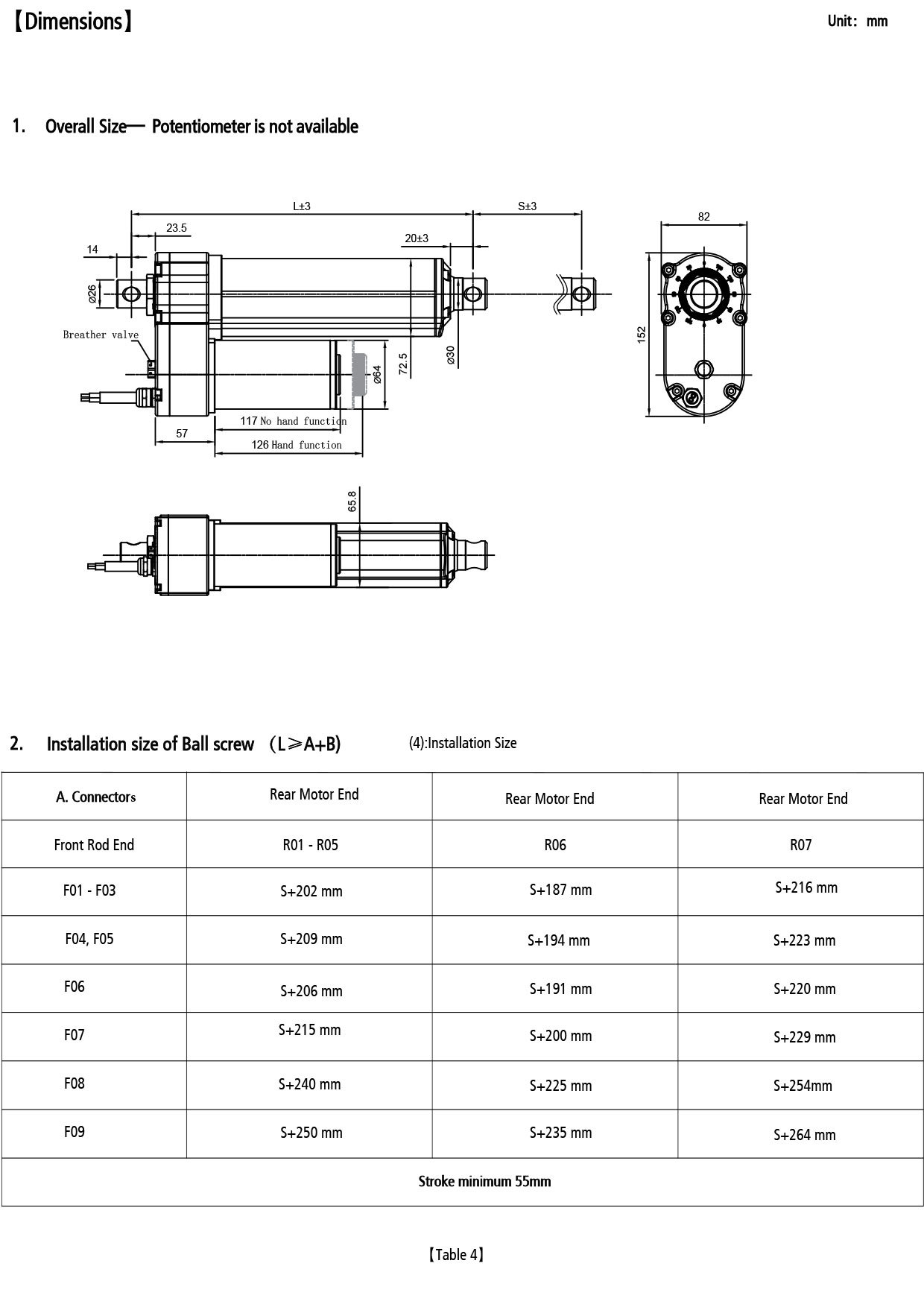

- 3D drawing
-
- Commodity name: HB-DJ830G Linear Actuator(Free 3D Prints)
- Commodity ID: HB-DJ830G
Rated load: 1,200–12,000 N, optional; <br/> No-load speed: 6.7–66.7 mm/s; <br/> Input voltage: 12 V, 24 V, 36 V, or 48 V DC, selectable; <br/> Customized travel itinerary: recommended ≤1000 mm; <br/> Duty cycle: 20%–30%; <br/> Operating temperature: -10°C to 65°C (optional ultra-low-temperature protection down to -40°C); <br/> Signal Feedback: Optional configurations include limit switches, Hall sensors, potentiometers, magnetic switches, and manual adjustment of overcurrent protection.
Model: HB-DJ830G
Load: 1200 N–120,000 N

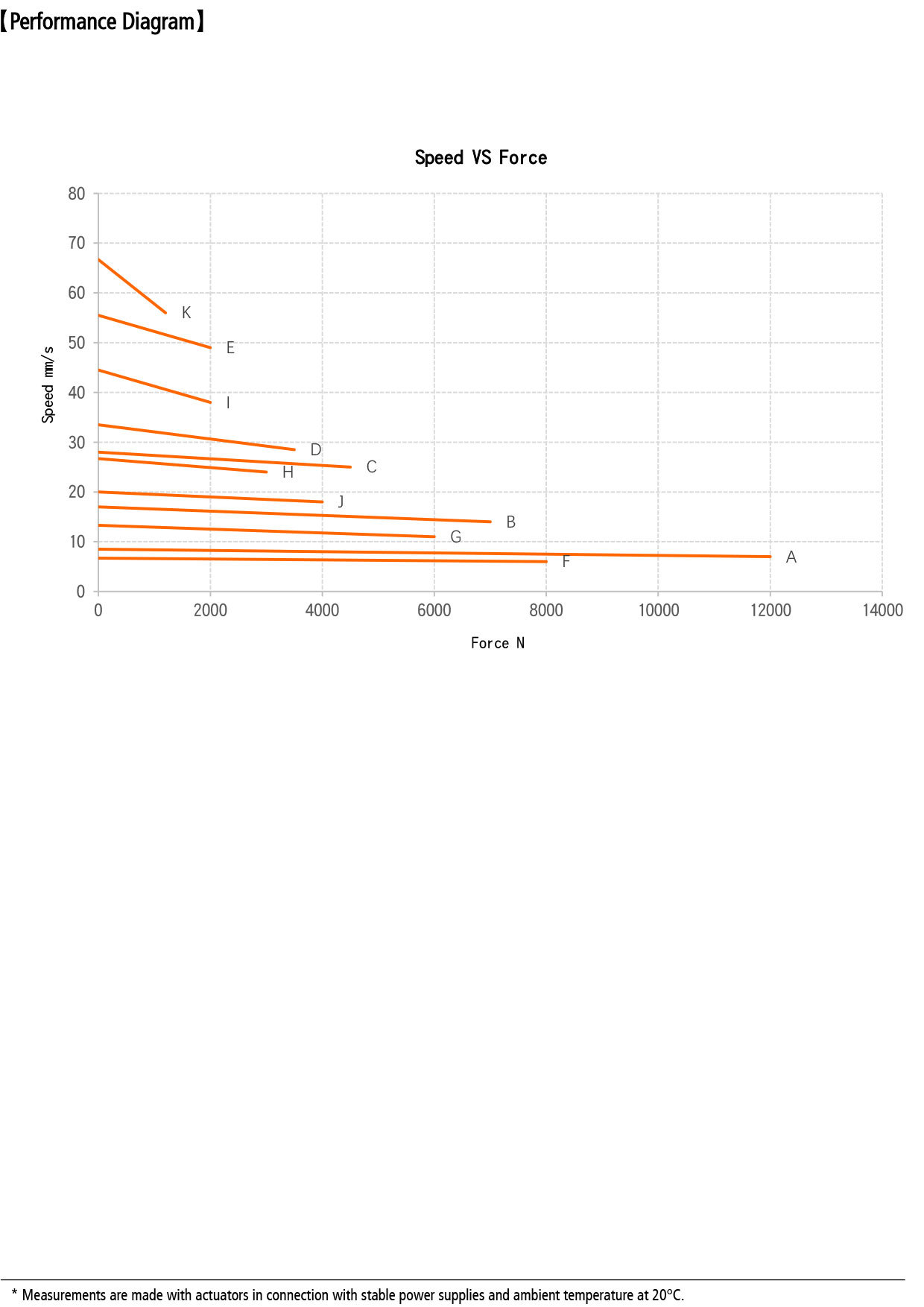

Speed: 6.7–66.7 mm/s

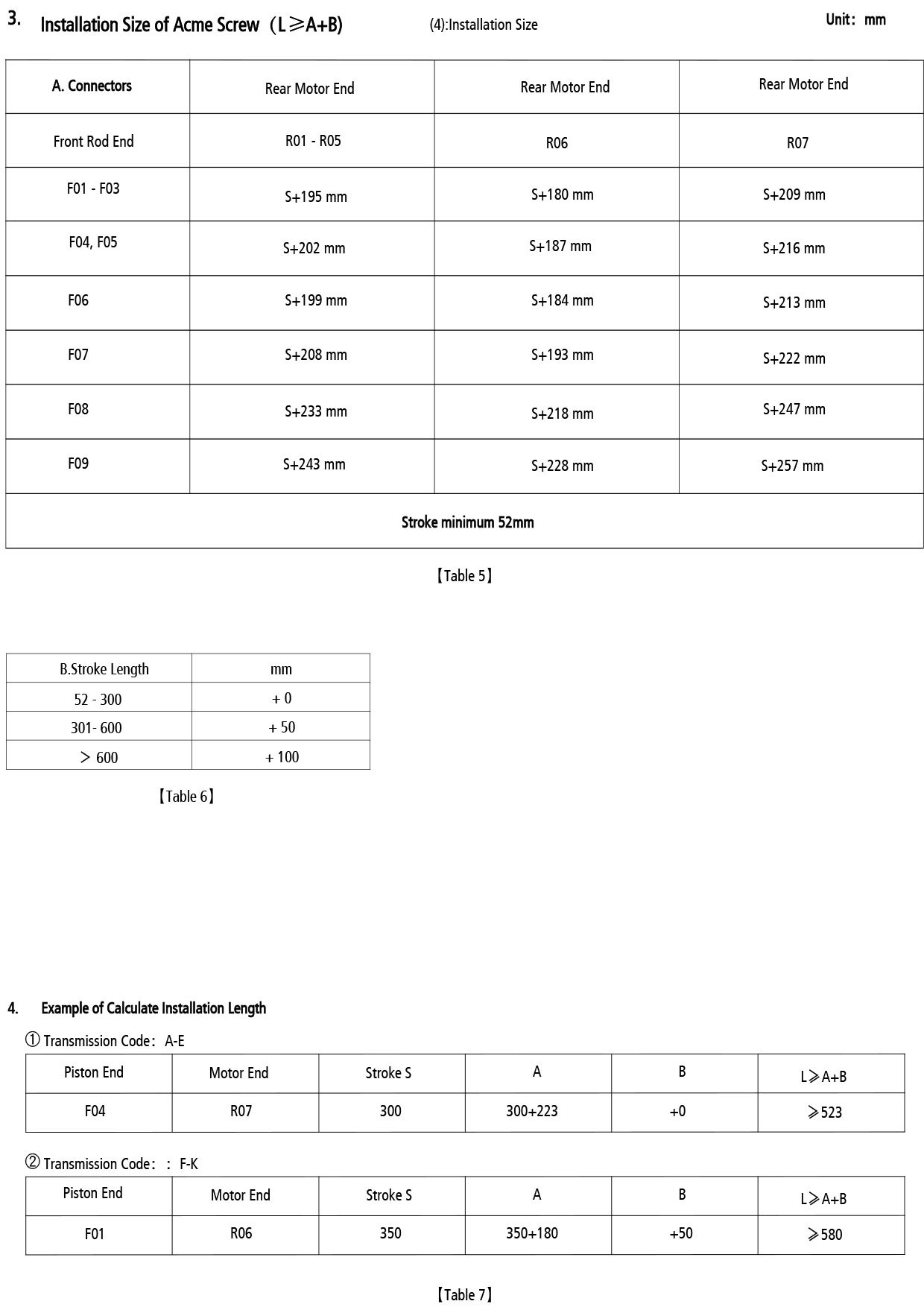

Customized travel itinerary: ≤1000mm
Voltage: 12V, 24V, 36V, 48V DC brushed motors
Operating conditions: IP67, duty cycle 20%–30%.
Operating temperature: -10°C or -40°C; maximum operating temperature: 65°C.

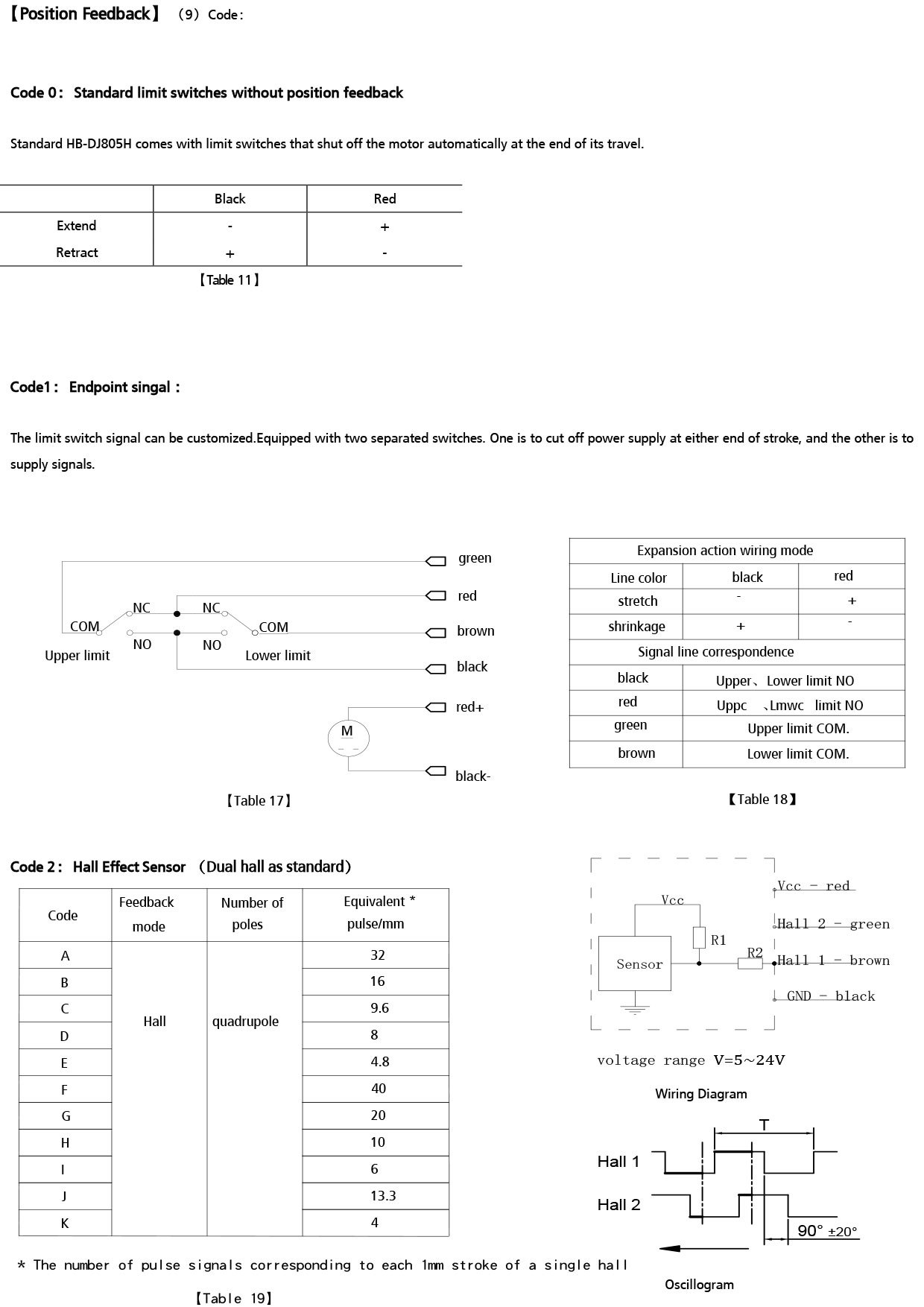

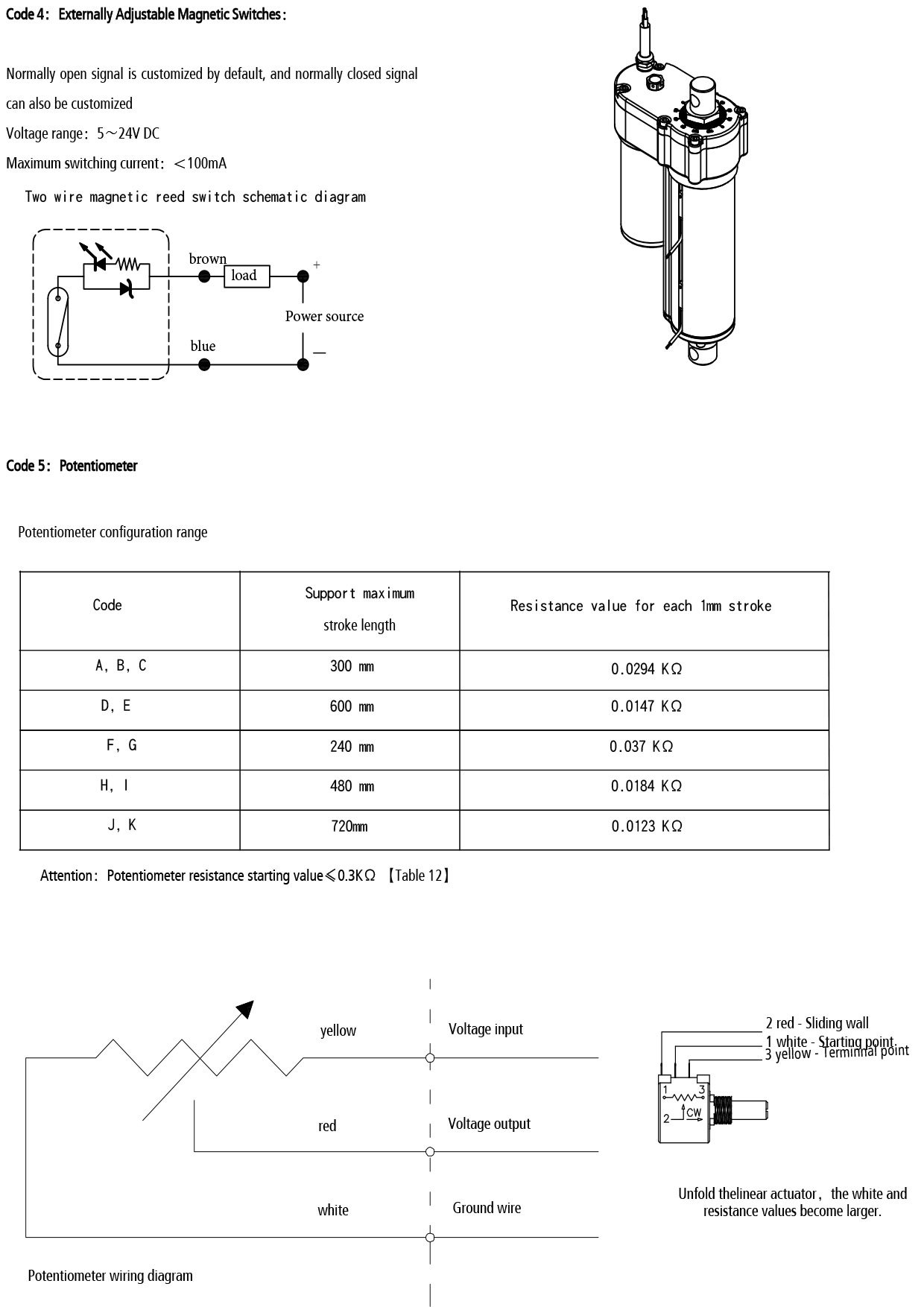

Position feedback: Hall sensors, potentiometers, reed switches, limit signals, and manual adjustment of overcurrent protection.
-
-
