Please select
Please select
Duty Cycle 10%-25%【Exposed to Weather】
Duty Cycle 50%-100%【Exposed to Weather】
Please select
up one level
≤ 2500N
≤ 4500N
≤ 8KN
≤ 15KN
≤ 20KN
Precise Control【Servo Motor】
Standard Control【Brushed/ Brushless DC/ AC Motor】
Please select
up one level
≤ 8KN
≤ 20KN
≤ 8KN
≤ 20KN
Force: 50N-1200N,
Speed: 5.5-80mm/s,
Stroke: 30-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP66, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Feedback: Potentiometer, reed switches, or end-stop signal.
Force: 200N-2000N,
Speed: 5-55mm/s,
Stroke: 30-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP66, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, potentiometer, reed switches, or end-stop signal.
Force: 1000N-2000N,
Speed: 6-15mm/s,
Stroke: 30-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP66, duty cycle 20%,
Operation Temp.: low -10 or -40℃, high 65℃,
Feedback: Hall effect sensor, reed switches, or end-stop signal,
Low noise around 45dB.

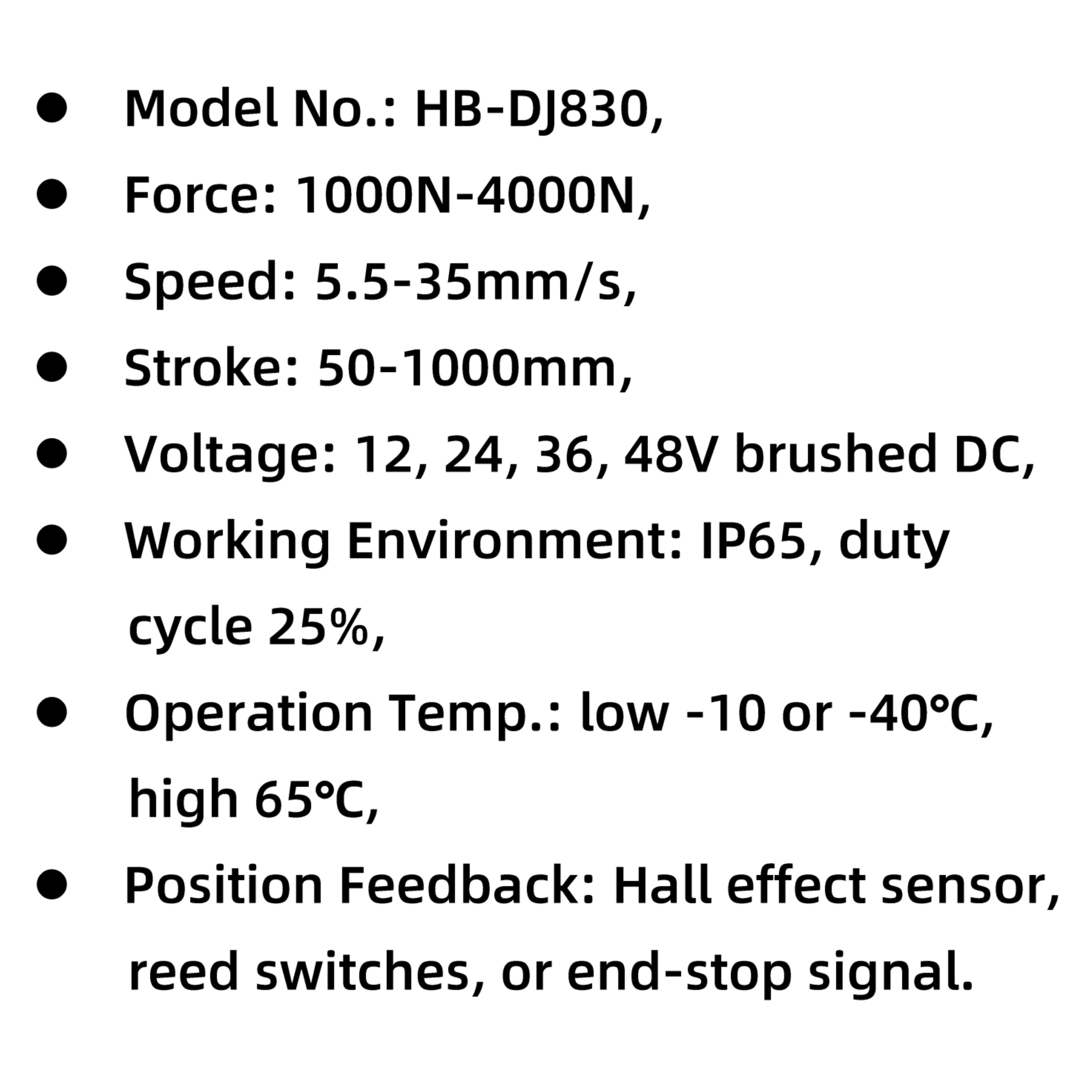

Force: 1000N-4000N,
Speed: 5.5-35mm/s,
Stroke: 50-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP65, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, reed switches, or end-stop signal.
Force: 2000N-7000N,
Speed: 5.5-35mm/s,
Stroke: 50-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP65, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, reed switches, or end-stop signal,
Features electric mode and manual override.
Force: 2000N-7000N,
Speed: 5.5-35mm/s,
Stroke: 50-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP65, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, potentiometer, reed switches, or end-stop signal.
Force: 3,200N-12,000N,
Speed: 6-37mm/s,
Stroke: 50-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP66, duty cycle 25%,
Operation Temp.: low -10 or -40℃, high 65℃,
Position Feedback: Hall effect sensor, potentiometer, or end-stop signal,
Features electric mode and manual override.
Force: 1000N-4000N,
Speed: 11-69mm/s,
Stroke: 50-600mm,
Voltage: 380VAC three-phrase, 220VAC servo, 48V brushless DC, 24V brushed DC, 48V brushed DC,
Working Environment: IP55, low -10℃ to 65℃.
Force: 1400N-8000N,
Speed: 12-74mm/s,
Stroke: 50-800mm,
Voltage: 380VAC three-phrase, 220VAC servo, 48V brushless DC, 24V brushed DC, 48V brushed DC,
Working Environment: IP55, low -15℃ to 40℃.
Force: 5,000N-20,000N,
Speed: 19-80mm/s,
Stroke: 50-1000mm,
Voltage: 380VAC three-phrase, 220VAC servo, 48V brushless DC, 24V brushed DC, 48V brushed DC,
Working Environment: IP55, low -15℃ to 40℃.
Force: 500N-2500N,
Speed: 2.5-22mm/s,
Stroke: 30-1000mm,
Voltage: 12, 24, 36, 48V brushed DC,
Working Environment: IP66, duty cycle 20%,
Operation Temp.: low -10 or -40℃, high 65℃,
Feedback: Hall effect sensor, end-stop signal,
Low noise around 45dB.
Force: 7,500N-15,000N,
Speed: 5.5-11mm/s,
Stroke: 50-1000mm,
Voltage: 380VAC three-phrase, 220VAC servo, 48V brushless DC, 24V brushed DC, 48V brushed DC,
Working Environment: IP55, low -15℃ to 40℃.
