A. Optional Parameters
Rated Load: 1000–3000 N, optional
No-Load Speed: 4–22 mm/s, optional
Input Voltage: 12 V or 24 V DC, optional
Custom Stroke Length: Recommended ≤ 300 mm
Duty Cycle: 15%; under normal ambient temperature and full-load conditions, continuous operation is recommended to not exceed 2 minutes
Lead Screw Type: Standard trapezoidal lead screw
Motor Type: Standard brushed DC motor
Signal Feedback: Permanent Magnet DC Motor
Signal Feedback: Optional dual Hall pulse feedback or switch position signal
Operating Temperature: -25°C to 65°C
b. Standard Protection:
External Overcurrent Protection Limit Switch
A. Optional Parameters
Rated Load: ≤2000N
No-Load Speed: 3.4–30 mm/s
Input Voltage: 12 V or 24 V DC, selectable
Custom Stroke Length: Recommended ≤1000 mm
Duty Cycle: 15%; under full‑load conditions at room temperature, continuous operation is recommended to not exceed 2 minutes
Lead Screw Type: Trapezoidal Lead Screw
Motor Type: Standard DC Brushed Motor; DC Brushless Motor available as an option
Signal Feedback: Hall Sensor
b. Standard Protection
Built‑in bidirectional limit switches that automatically cut power when the actuator is fully extended or fully retracted
Operating Temperature: -10°C to 55°C Protection Rating:
IP65 Dust‑ and Water‑Proof
Aluminum Alloy Housing with a Corrosion Resistance Rating of Nss 480h
A. Optional Parameters Rated Load: 250–1,200 N (optional) No-Load Speed: 4–20 mm/s (optional) Input Voltage: 12 V or 24 V DC (optional) Custom Stroke Length: Recommended ≤ 1,000 mm Duty Cycle: 20%; under normal ambient temperature and full-load conditions, continuous operation is recommended for no more than 2 minutes Lead Screw Type: Standard trapezoidal lead screw Motor Type: Standard brushed DC motor b. Standard Protection Built-in bidirectional limit switches that automatically cut off power when the actuator is fully extended or fully retracted Operating Temperature: -10°C to 65°C (optional – optional ultra-low‑temperature protection available down to -40°C) IP66 dust‑ and water‑proof rating, suitable for outdoor use Aluminum alloy body and piston rod, with corrosion‑resistant zinc‑nickel plated connection ends
HB-DJ825 Linear Actuator(Free 3D Prints)
Load: 1000 N–2000 N,
Speed: 6–15 mm/s,
Customizable travel itinerary: 30–1000 mm,
Voltage: 12V, 24V, 36V, 48V DC brushed motors,
Operating conditions: IP66, duty cycle 20%,
Operating temperature: low temperature -10°C or -40°C, high temperature 65°C.
Position feedback: Hall sensors, reed switches, limit signals,
Low noise: approximately 45 dB.
Speed: 6–15 mm/s,
Customizable travel itinerary: 30–1000 mm,
Voltage: 12V, 24V, 36V, 48V DC brushed motors,
Operating conditions: IP66, duty cycle 20%,
Operating temperature: low temperature -10°C or -40°C, high temperature 65°C.
Position feedback: Hall sensors, reed switches, limit signals,
Low noise: approximately 45 dB.
Load: 500 N–2500 N,
Speed: 2.5–22 mm/s,
Customizable travel itinerary: 30–1000 mm,
Voltage: 12V, 24V, 36V, 48V DC brushed motors,
Operating conditions: IP66, duty cycle 20%,
Operating temperature: low temperature -10°C or -40°C, high temperature 65°C.
Position feedback: Hall sensor, limit signals,
Low noise: approximately 45 dB.
Speed: 2.5–22 mm/s,
Customizable travel itinerary: 30–1000 mm,
Voltage: 12V, 24V, 36V, 48V DC brushed motors,
Operating conditions: IP66, duty cycle 20%,
Operating temperature: low temperature -10°C or -40°C, high temperature 65°C.
Position feedback: Hall sensor, limit signals,
Low noise: approximately 45 dB.

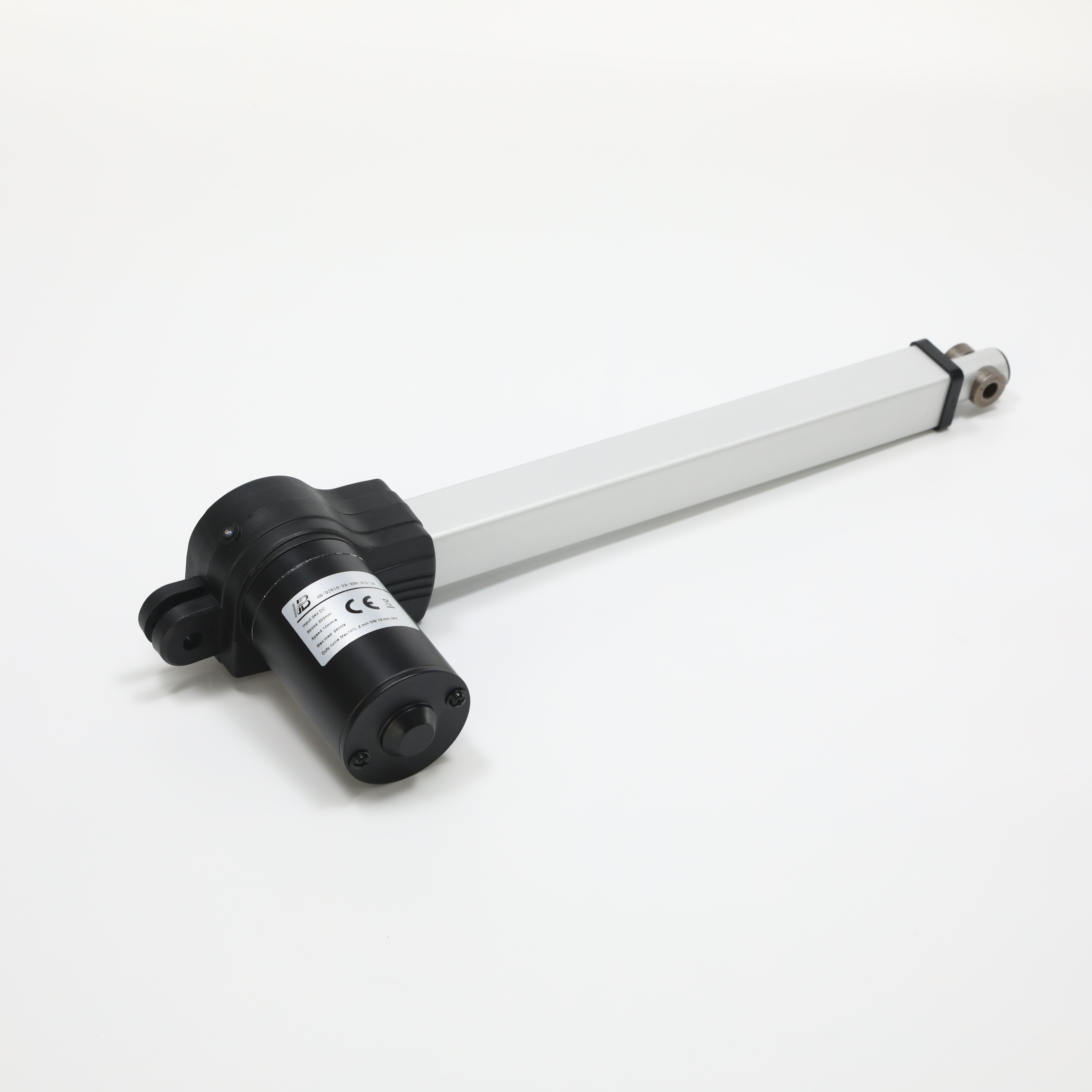

● Voltage: 12V/24V
● Low noise of the product
● Maximum load：4000N
● Stroke: 50-600mm (optional)
● Fastest speed: 32mm/s
● Can be applied to massage chair, functional sofa, automatic window opening, medical equipment, etc.

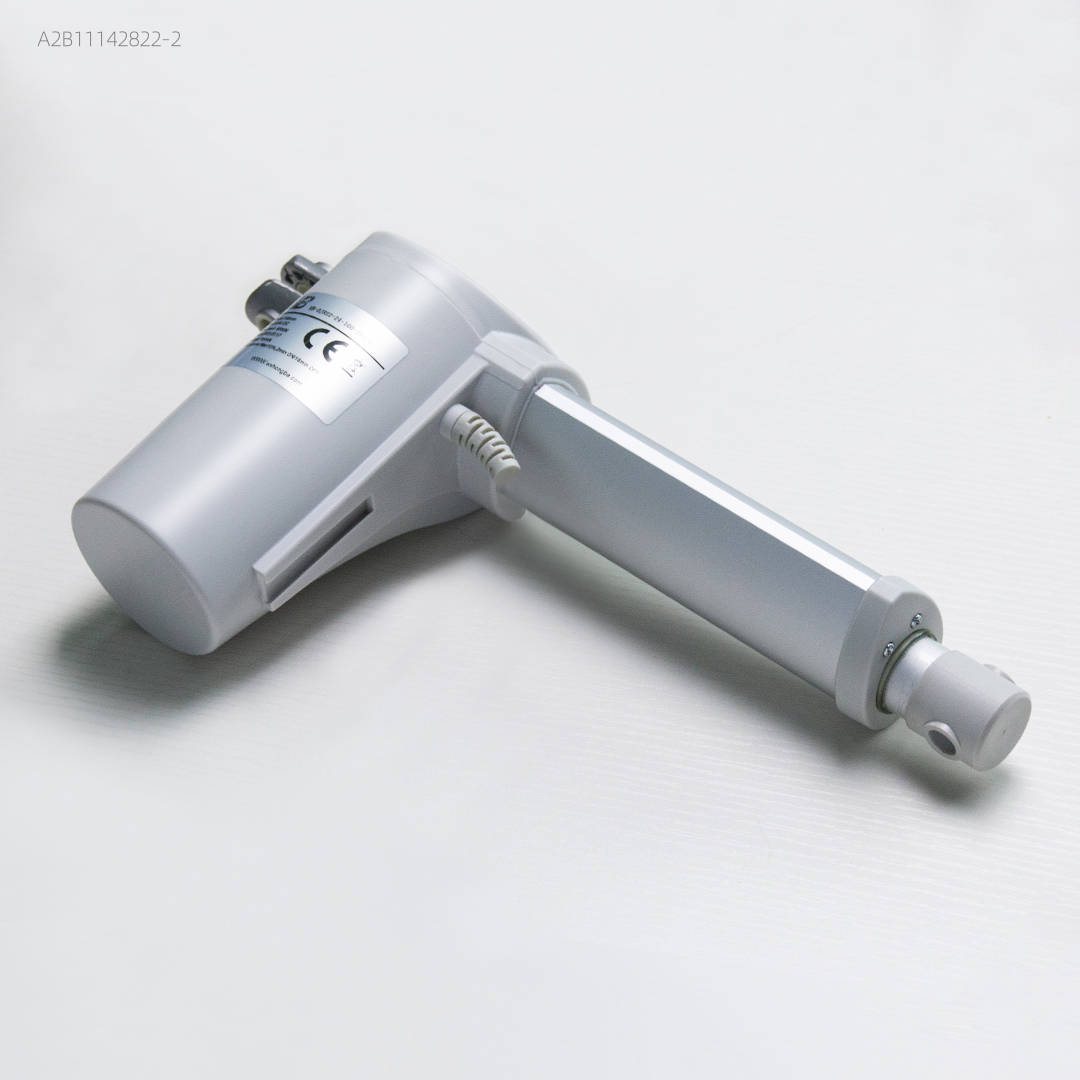

● Low noise electric actuator
● Voltage: 12V/24V
● Stroke：50mm-600mm(optional)
● Noise：30cm measuring distance≤50dB, 1m measuring distance≤40dB
● Speed：5mm-16mm/s
● Maximum load:6000N
● Widely used in various types of light industrial equipment, medical, furniture and other industries.

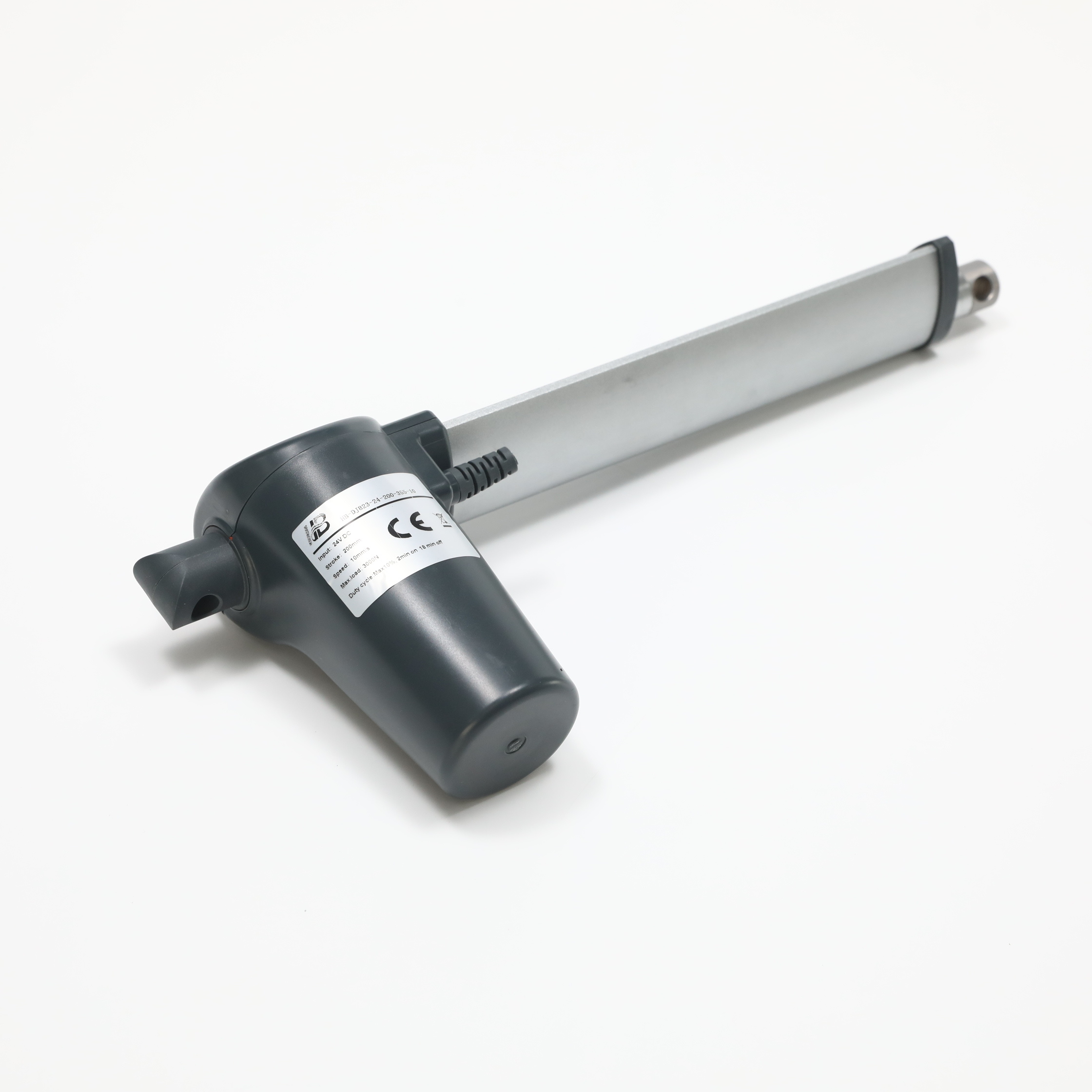

● Voltage: 12/24V DC
● Speed：The fastest 15mm/s
● Maximum load: 2000N
● Low noise, silent electric actuator
● Voltage: 12V/24V
● Stroke: 50mm-600mm(customizable)
● Fastest speed: 25mm/s
● Stable quality and long service life
● Max. load 6000N
● Can be applied to massage chair, functional sofa, automatic window opening, medical equipment, etc.
