Maximum dynamic load: 16KN/25KN
Maximum static load: 45KN/60KN
Linear velocity: 0.8-1.4mm/s
Stroke: 300-900mm
Drive motor: Servo stepping motor/Brushless motor
Voltage: 24VDC, 36VDC
Operating temperature: -40℃-+60℃
Design life: 30 years

Maximum Dynamic Load: 16 kN / 25 kN; Maximum Static Load: 45 kN / 60 kN; Linear Speed: 0.8–1.4 mm/s; Stroke Range: 300–900 mm; Drive Motor: Servo Stepper Motor / Brushless Motor; Operating Voltage: 24 VDC, 36 VDC; Operating Temperature: -40℃ to +60℃; Design Life: 30 years; Product Features: Intelligent algorithms, low-light algorithms; Optional fisheye bearings available; Strong self-locking capability and shock resistance; Electrical interlock function; Protection Rating IP65; Application Industries: Photovoltaic, Energy Storage—suitable for low-light conditions and seasonal tracking; Key Parameters: Parameter Dimension Details—Motion Performance: Maximum Dynamic Load 16 kN / 25 kN; Maximum Static Load 45 kN / 60 kN; No-Load Speed 0.5–3 mm/s; Customized Stroke Range 300–900 mm; Electrical Control Input Voltage: 24 VDC, 36 VDC; Motor Type [Standard/Optional]: Brushless Motor, Brushed DC Motor, Stepper Motor; Signal Feedback [Standard/Optional]: Built-in Bidirectional Limit Switches—automatically cuts power when fully extended or retracted; Duty Cycle ≤25% (recommended continuous operation not exceeding 2 minutes); Transmission Design: Screw Type [Standard/Optional]: Trapezoidal Screw, Ball Screw, Planetary Roller Screw; Lubrication Method: Maintenance-free (pre-lubricated); Environmental Adaptability: Protection Rating IP65; Body Material: Aluminum Alloy / Stainless Steel; Surface Treatment: Corrosion-resistant Zinc-Nickel Plating; Operating Temperature: -45℃ to +65℃; Installation Method [Standard/Optional]: Rear Flange + External Thread Rod End (standard); Optional Front Pivot Available; Compliance Certifications: CE, RoHS, ISO9001; Key Parameters: Success Stories & Customer Endorsements; 817T, China, 10 MW, 2024—Quotation Validity: Valid for 2 weeks after inquiry (price changes require prior notice); Minimum Order Quantity (MOQ): e.g., 10 pcs / 50 pcs (specify according to actual needs); Payment Methods: T/T—30% prepayment, 70% before bill of lading; PayPal (for small trial orders); Shipping Terms: FOB—Shanghai Port/Ningbo Port (specify clearly); Logistics & Freight: Sea/Air freight quotes available (tax included, duties excluded); Delivery Lead Time: Mass Orders: 2–4 weeks (depending on stock levels and customization requirements); Customization Capability: Supports customized stroke, voltage, feedback type, etc.; Packaging Method: Individual carton + inner tray + outer box (shockproof and moisture-proof); Attached Images; After-sales Service Agents: Russia, South Korea; Business Information [Image] (Buyer’s Concerns); Product Support Information: 1. Installation Diagram; 2. Dimensional Specification Table; Appearance Color: Silver, Gray, Black; Factory On-site Application Areas; Certification Standards.

Maximum dynamic load: 5KN
Maximum static load: 40KN
Linear speed: 2.85mm/r±10%
Stroke: 300-500mm
Drive motor: 24V lithium battery drive
Bracket type: 2x13/2x26/2x28
Applicable temperature: -40℃-+60℃
Design life: 25 years

Product Model: 833K
Maximum Dynamic Load: 15KN
Maximum Static Load: 45KN
Linear Speed: 0.6-1.0mm/s
Stroke: 300-950mm
Drive Motor: Brushed Motor
Voltage: 24VDC
Operating Temperature: -40℃-+60℃
Design Life: 25 years

Load: 28KN/35KN
Maximum static load: 70KN/80KN
Linear velocity: 1.5mm/s, 1.0mm/s
Stroke: 500-1000 (optional)
Drive motor: Brushed motor/Stepper motor/Brushless motor
Voltage: 24-48VDC
Applicable temperature: -40℃—+60℃
Design life: 30 years

Maximum dynamic load: 80KN/100KN
Maximum static load: 180KN/220KN
Linear velocity: 0.8-1.4mm/s
Stroke: 500-1000mm
Drive motor: Brushless motor
Voltage: 24-48VDC
Applicable temperature: -45℃—+65℃
Design life: 30 years

Dynamic load: 10KN
Maximum static load: 40KN
Linear velocity: 1.0mm/s
Stroke: 300-700mm
Drive motor: Stepper motor/Brushless motor
Voltage: 24VDC, 36VDC
Operating temperature: -40℃—+65℃
Design life: 30 years

Maximum dynamic load: 25KN
Maximum static load: 60KN
Linear velocity: 1.0mm/s
Stroke: 300-900mm
Drive motor: Brushed motor/Stepper motor/Brushless motor
Voltage: 24VDC, 36VDC
Operating temperature: -45℃—+65℃
Design life: 30 years

● Maximum dynamic load：20KN, Maximum halfway static load：60KN ● Speed：≥1.4mm/s ● Stroke：500-850mm(optional) ● Duty cycle：10% ● Voltage：24VDC ● Applicable temperature: -40℃ to +65℃ ● Option: Motor option: brush, stepper motor ● Product Features High thrust                                Heavy-duty aluminum housing                                High self-locking capability                                Designed for outdoor use                                Protection class IP65

●  Maximum dynamic load: 22.5KN, maximum halfway static load: 133KN ●  Speed: ≥0.7mm/s ●  Stroke: 500-1000mm (optional) ●  Duty cycle: 10% ●  Voltage: 24VDC ●  Applicable temperature: -40℃ to +65℃ ●  Product features Large thrust                                 Heavy-duty aluminum case                                 High self-locking capability                                 Designed for outdoor use                                 Protection class IP65                                 Easy installation, disassembly and maintenance of motor and reducer

●Speed: 1mm/s ●Stroke: 300-600mm(optional) ●Applicable temperature: -40℃ to +65℃ ●Product features Large thrust                               Heavy-duty aluminum case                               High self-locking capability                               Designed for outdoor use                               Protection class IP65

● Products are suitable for solar angle adjustment ● More than 500 hours salt spray test ● Built-in limit switch, Hall sensor can be added ● IP66 high protection level ● The product has passed the third party waterproof, salt spray, high and low temperature, ultraviolet light, impact test ● Thrust force: ≥6000N ● Speed: 1.5mm/s, 2mm/s, 3mm/s (other speed can be customized) ● Stroke: 500mm, 700mm, 1000mm (other strokes can be customized)

● Products are suitable for solar angle adjustment ● More than 500 hours salt spray test ● Built-in limit switch, Hall sensor can be added ● IP66 high protection level ● Product passed the third party waterproof, salt spray, high and low temperature, ultraviolet, impact test ● Maximum load: 30000N (static load 50000N) ● Speed: 1.5mm/s(other speed can be customized) ● Stroke: 1000mm (other strokes can be customized)

● Products are suitable for solar angle adjustment ● More than 500 hours salt spray test ● Built-in limit switch, Hall sensor can be added ● IP66 high protection level ● Product passed the third party waterproof, salt spray, high and low temperature, ultraviolet, impact test ● Maximum load: 15000N (static load 45000N) ● Speed: 1.4mm/s, 2mm/s, 3mm/s ● Stroke: 500mm, 700mm, 1000mm (customizable)

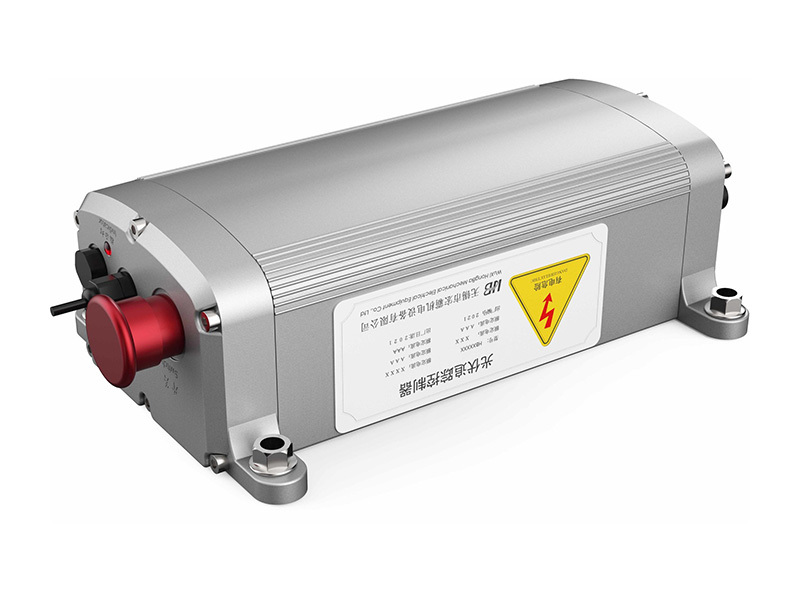

The solar tracker control box developed by our company automatically calculates the azimuth and altitude angles of the sun's motion trajectory and location point at any moment according to the local longitude, latitude and time. In the tracking stage, the system automatically issues commands according to the tracking range and controls the operation of electric actuators to adjust the tracking angle every once in a while so that the PV modules are always aligned with the current position of the sun.
