HB-DJ805H Linear Actuator

Summary: Stroke: 50-1000mm, Max Dynamic Load: 17,000N, Max Static Load: 20,000N, Speed: 5 – 35 mm/s, IP66 Protection, Voltage: 12, 24, 36. 48V DC

Keywords:

Belongs to category:

Inquiry:

Product overview

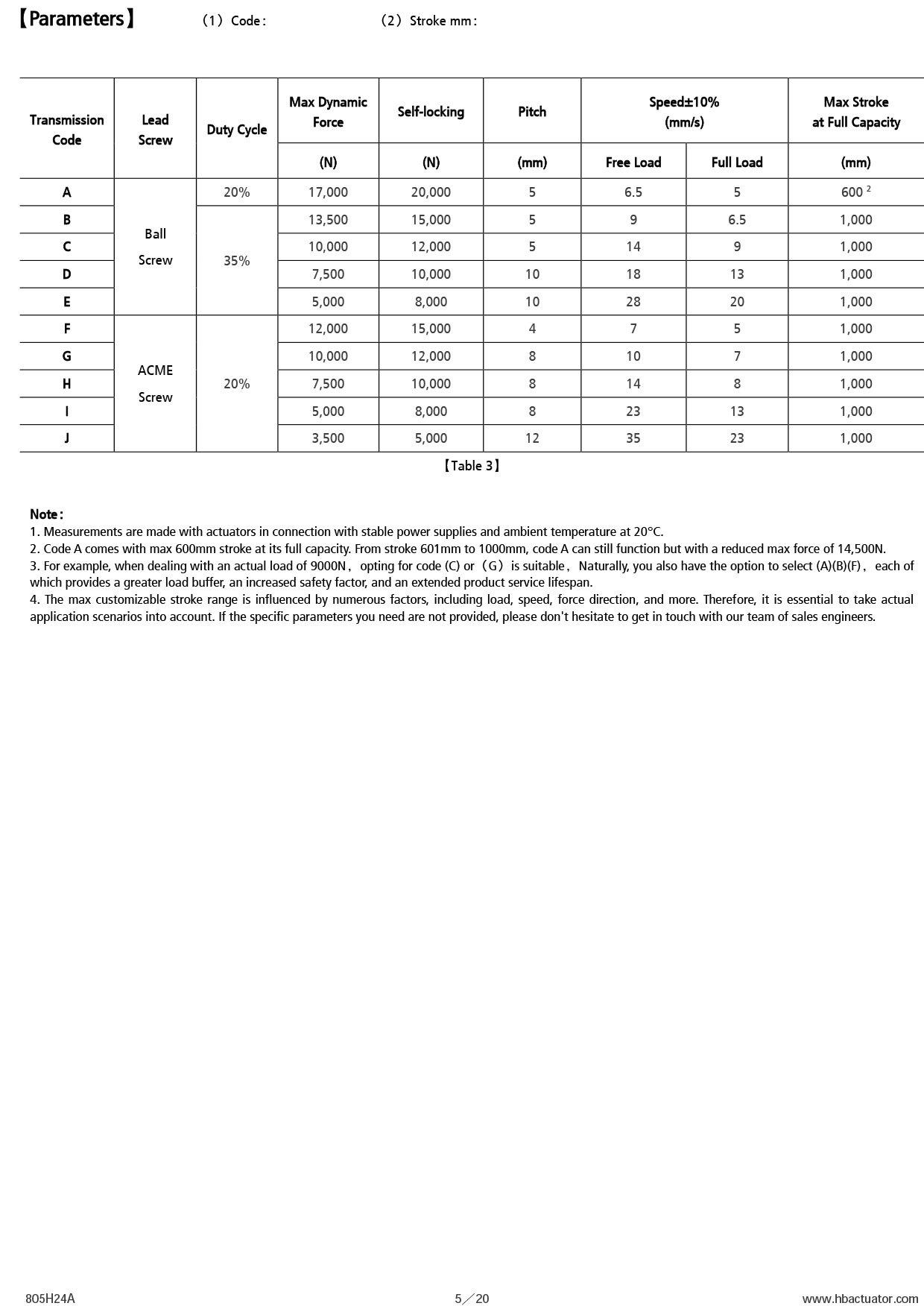

Parameter

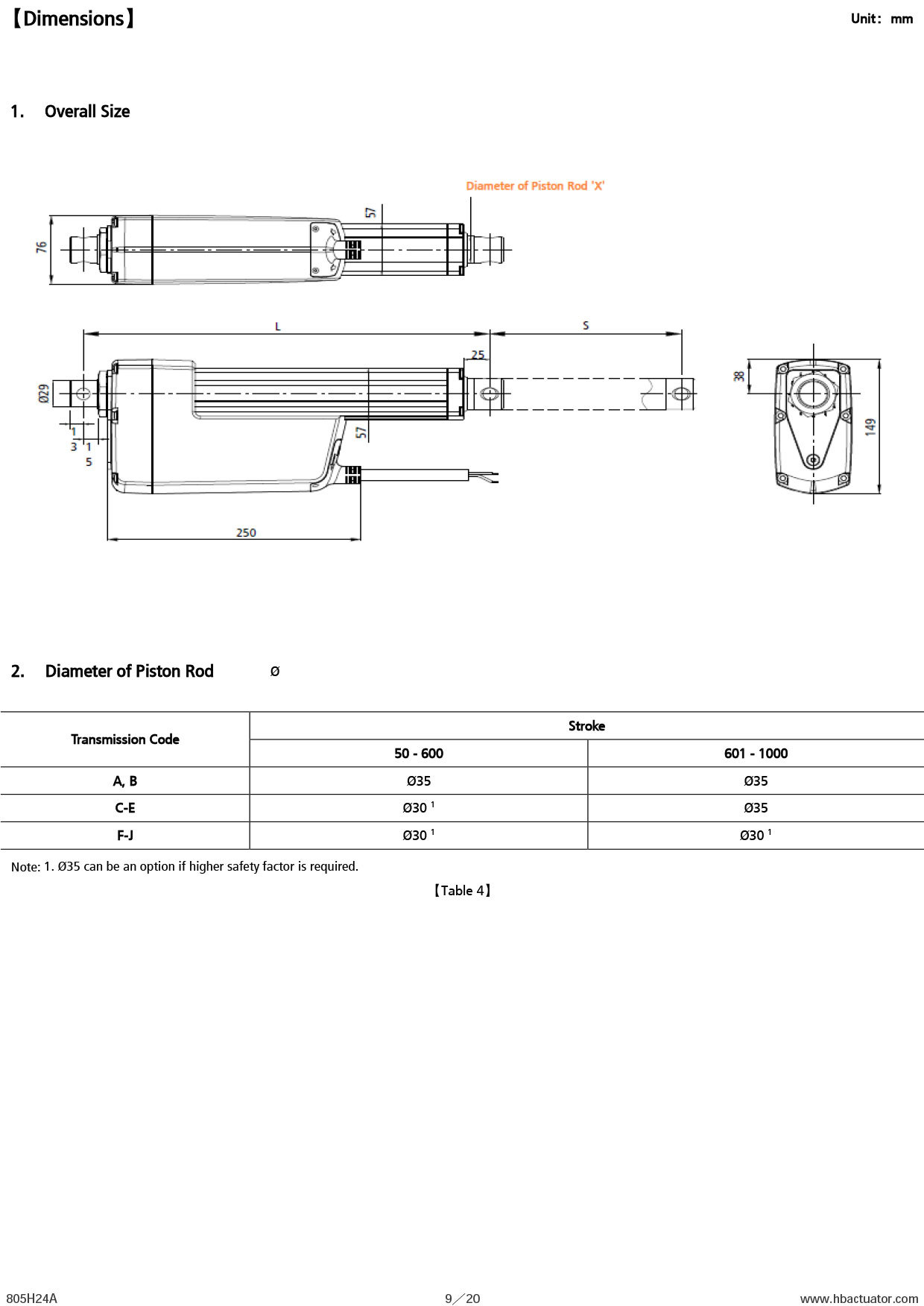

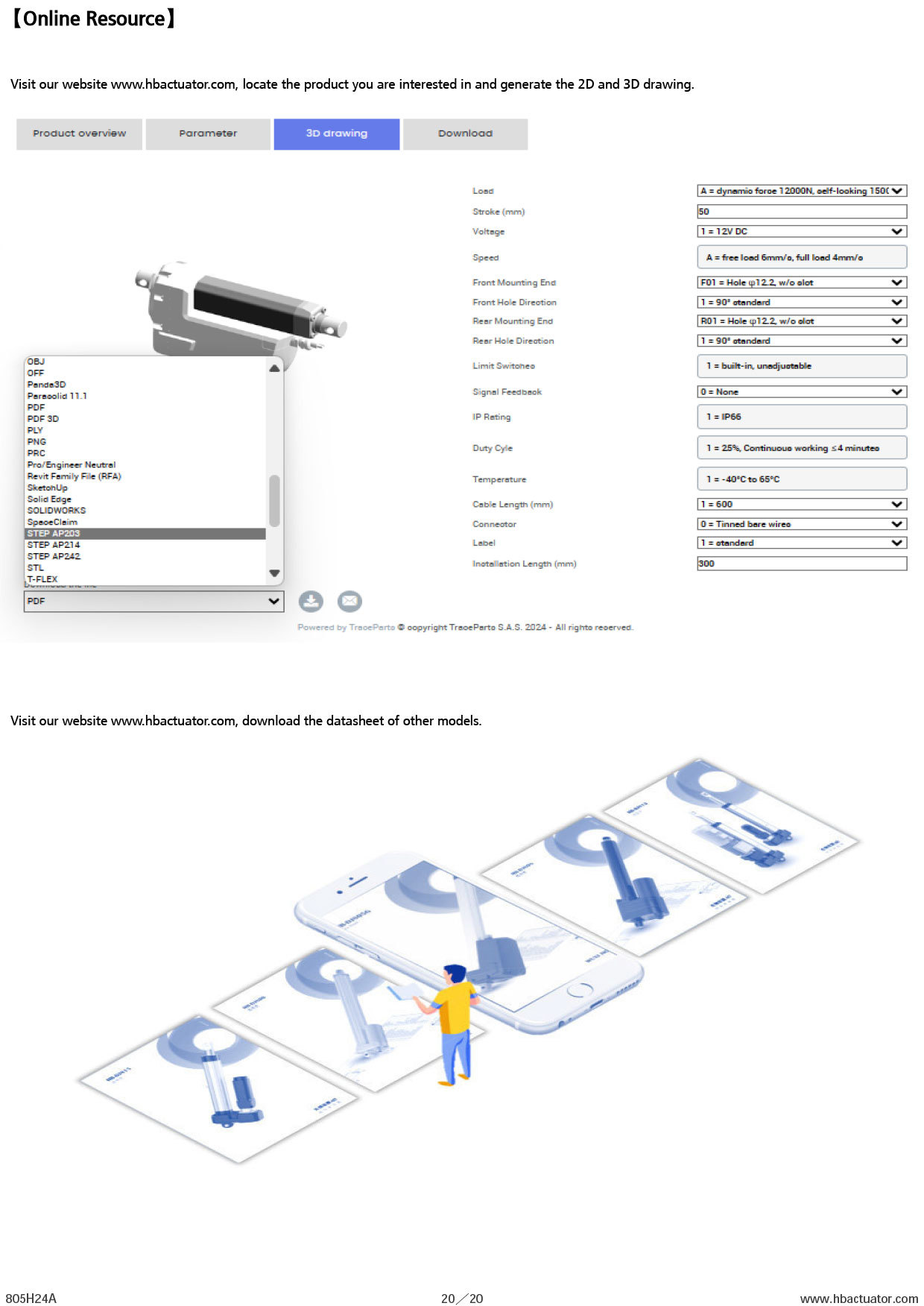

3D drawing
Download

- Commodity name: HB-DJ805H Linear Actuator
- Commodity ID: Model HB-DJ805H

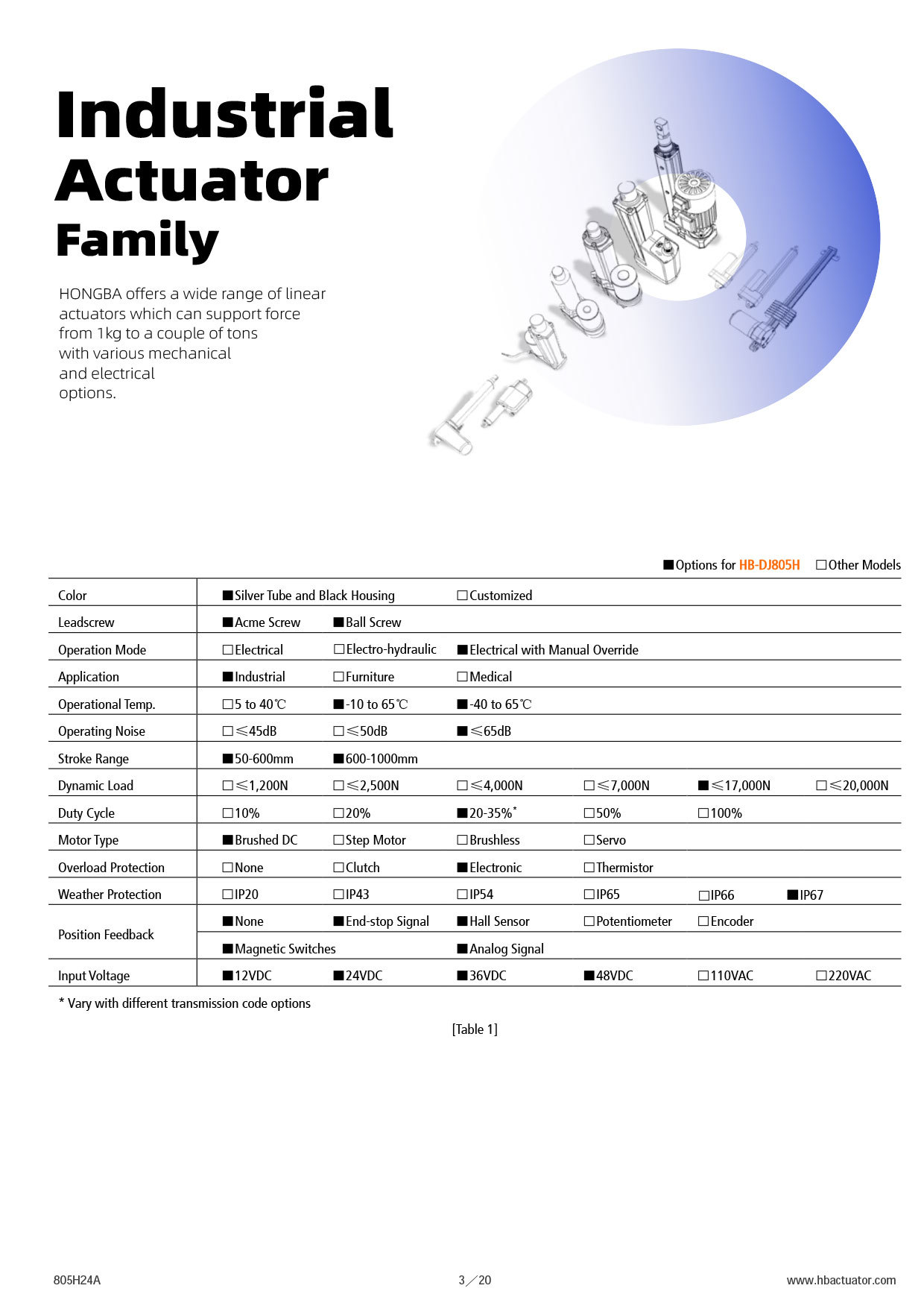

Stroke: 50-1000mm, Max Dynamic Load: 17,000N, Max Static Load: 20,000N, Speed: 5 – 35 mm/s, IP66 Protection, Voltage: 12, 24, 36. 48V DC

Stroke: 50-1000mm

Max Dynamic Load: 17,000N

Max Static Load: 20,000N

Speed: 5 – 35 mm/s

IP66 Protection

Voltage: 12, 24, 36. 48V DC

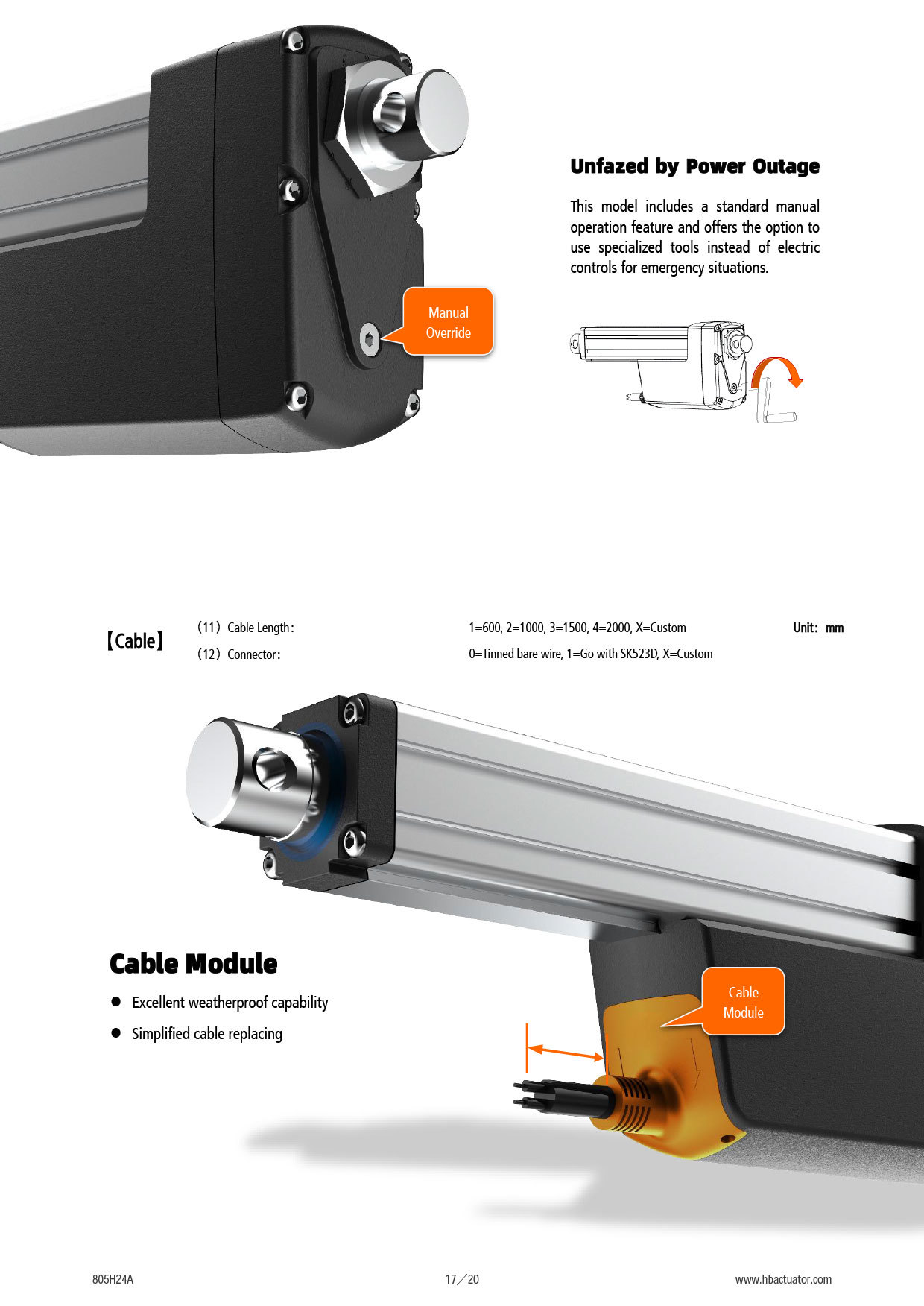

Support manual override

Electronic overload protection

Duty cycle: 20-35%

Noise ≤ 65 dB

Optional:

Lead Screw: ACME or ball

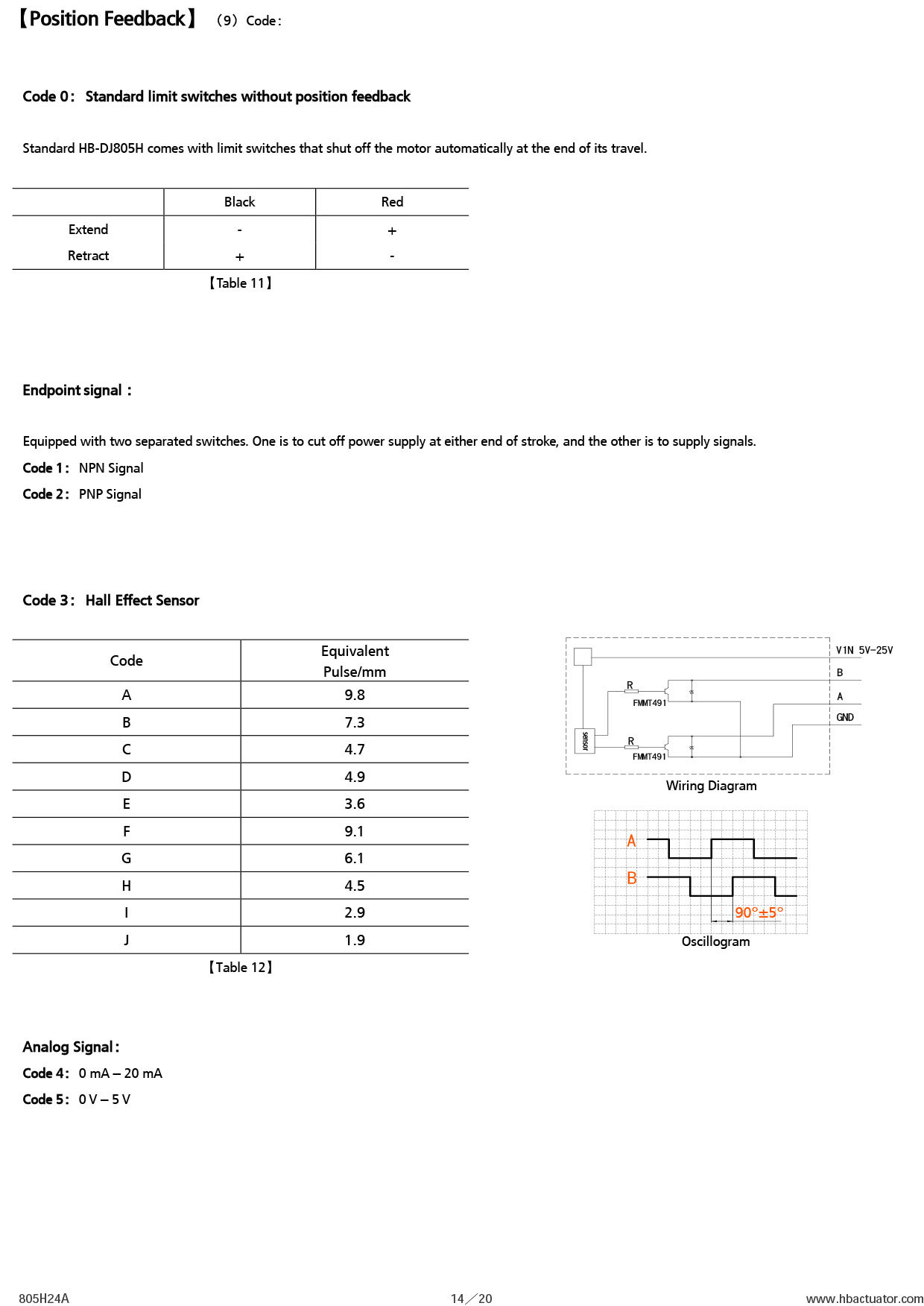

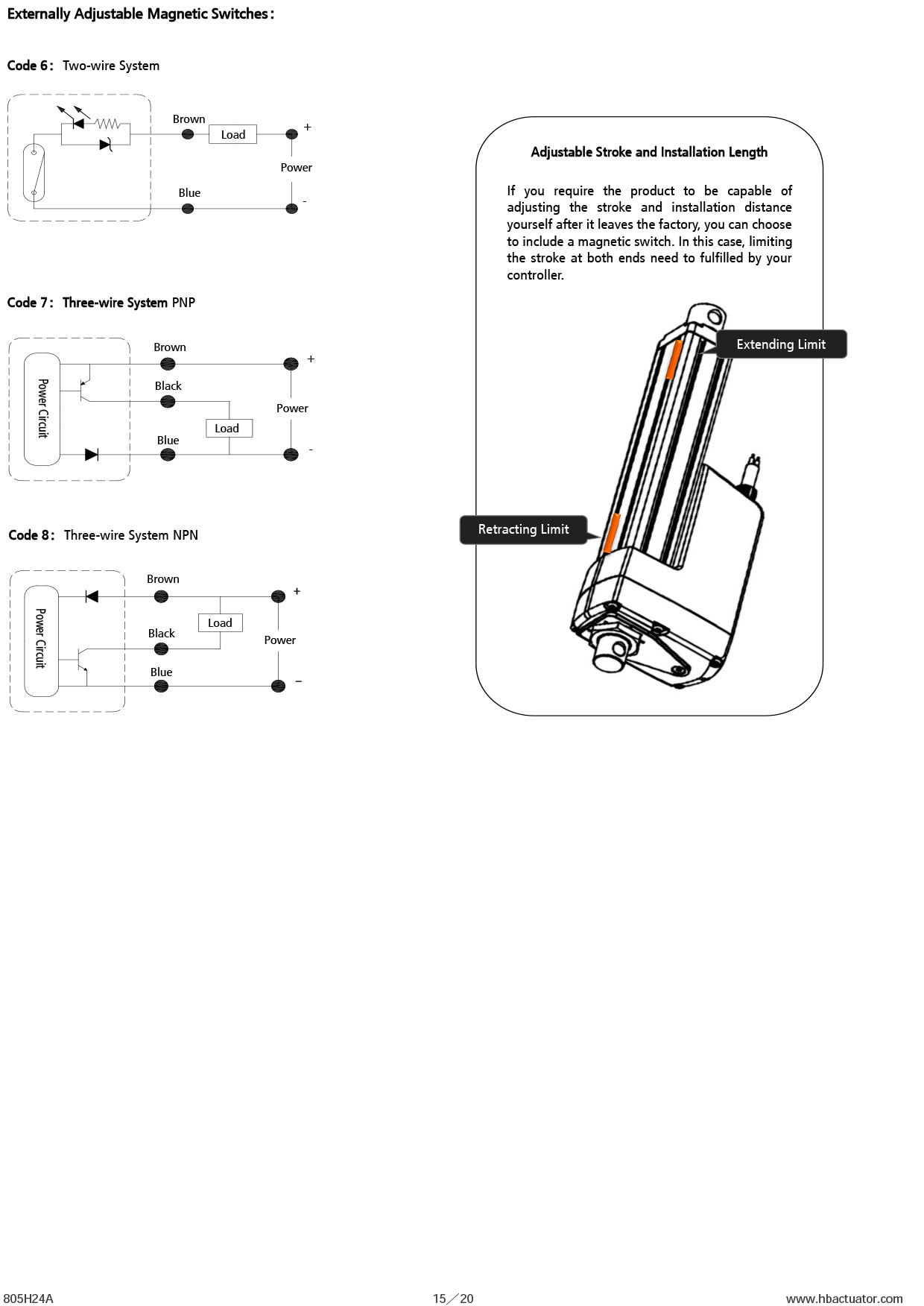

Position Sensor: End-stop signal, Hall effect sensor, Magnetic switches, Analog signal.

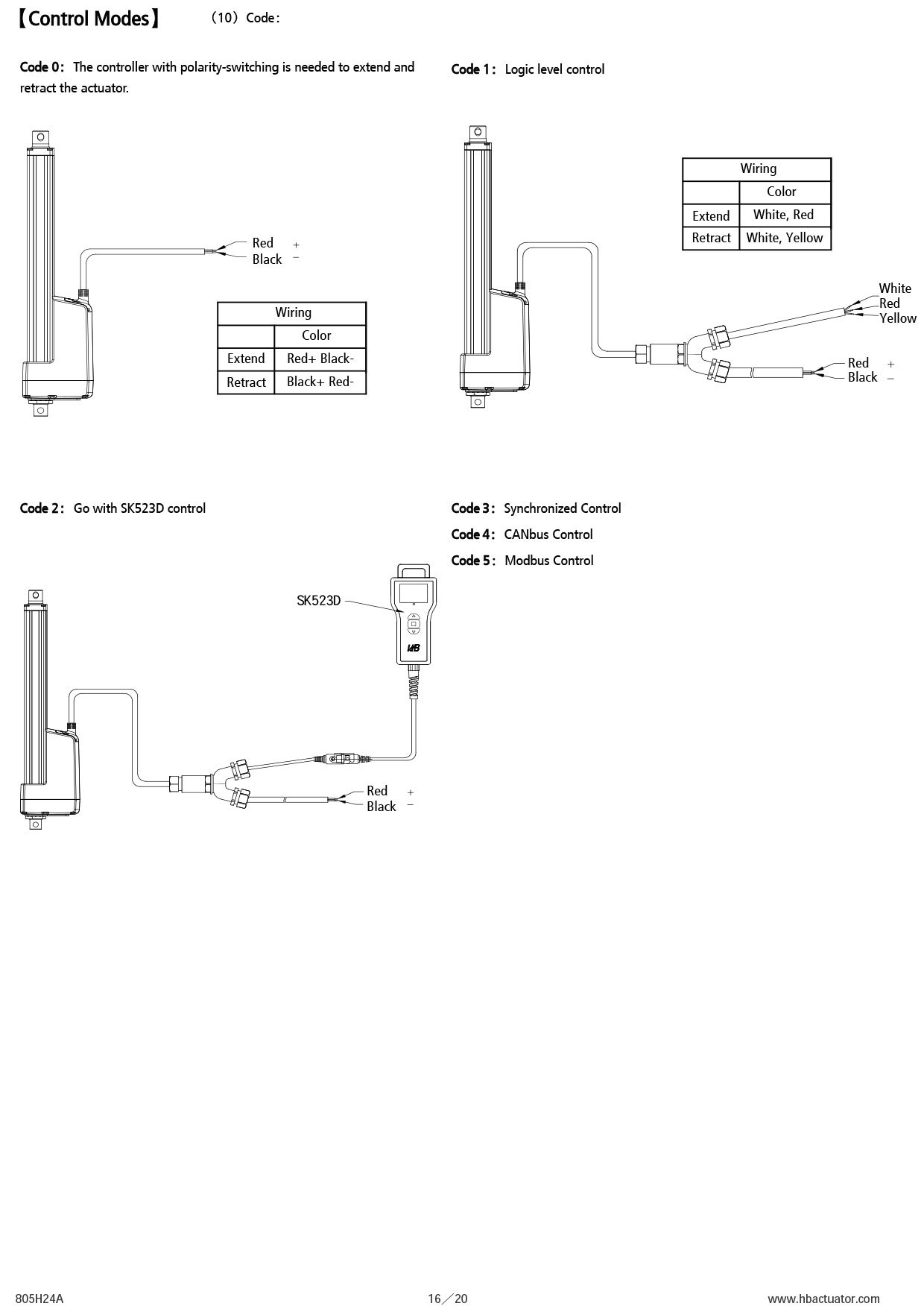

Controling: Logic level, Synch control
