HB-DJ830 Linear Actuator

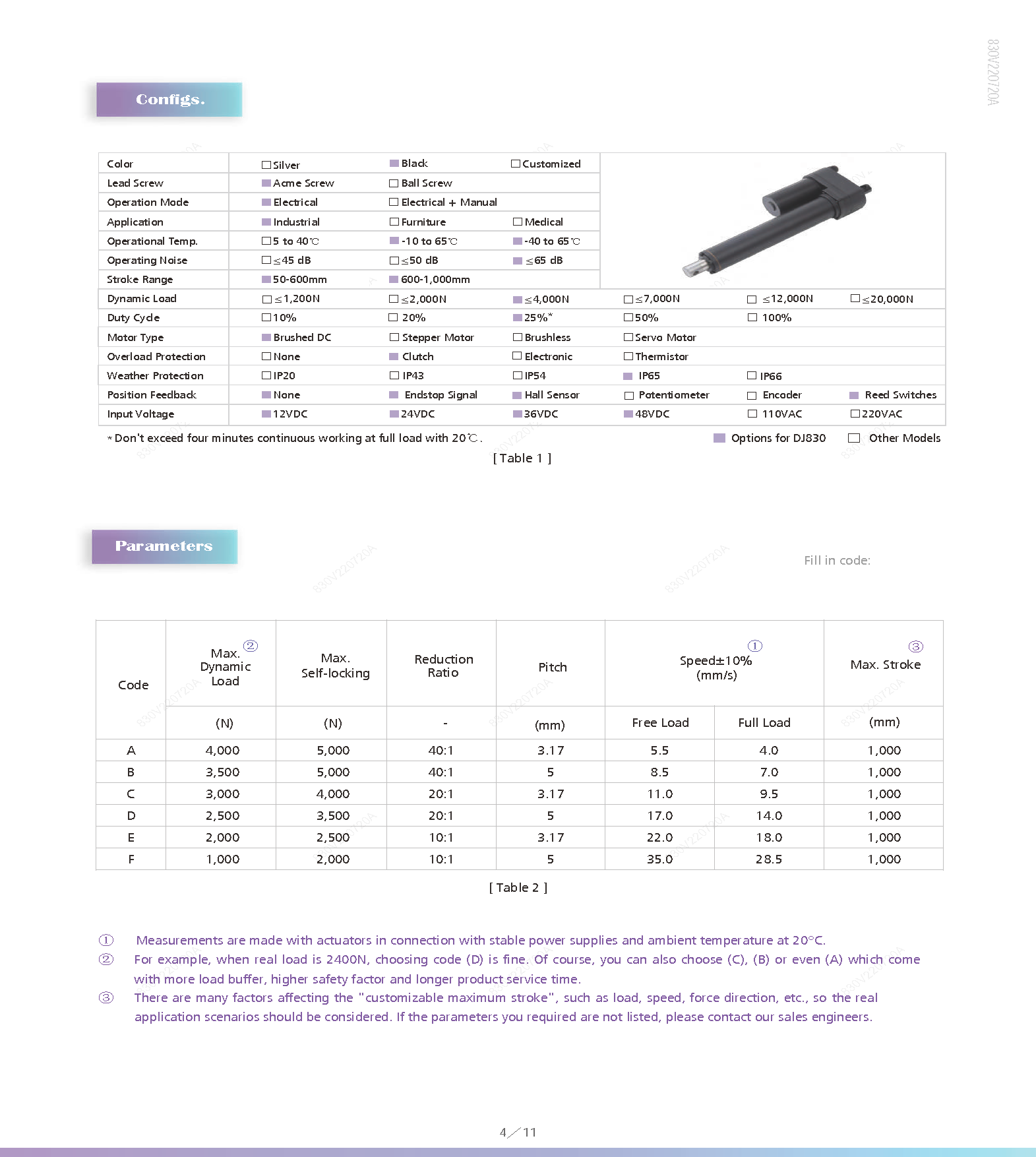

Force: 1000N-4000N, Speed: 5.5-35mm/s, Stroke: 50-1000mm, Voltage: 12, 24, 36, 48V brushed DC, Working Environment: IP65, duty cycle 25%, Operation Temp.: low -10 or -40℃, high 65℃, Position Feedback: Hall effect sensor, reed switches, or end-stop signal.
  • Product overview
  • Parameter
  • 3D drawing
  • Download
    • Commodity name: HB-DJ830 Linear Actuator
    • Commodity ID: 1051780408095367168
    • 下载中心: 下载中心

    Force: 1000N-4000N, Speed: 5.5-35mm/s, Stroke: 50-1000mm, Voltage: 12, 24, 36, 48V brushed DC, Working Environment: IP65, duty cycle 25%, Operation Temp.: low -10 or -40℃, high 65℃, Position Feedback: Hall effect sensor, reed switches, or end-stop signal.

    • Model No.: HB-DJ830,
    • Force: 1000N-4000N,
    • Speed: 5.5-35mm/s,
    • Stroke: 50-1000mm,
    • Voltage: 12, 24, 36, 48V brushed DC,
    • Working Environment: IP65, duty cycle 25%,
    • Operation Temp.: low -10 or -40℃, high 65℃,

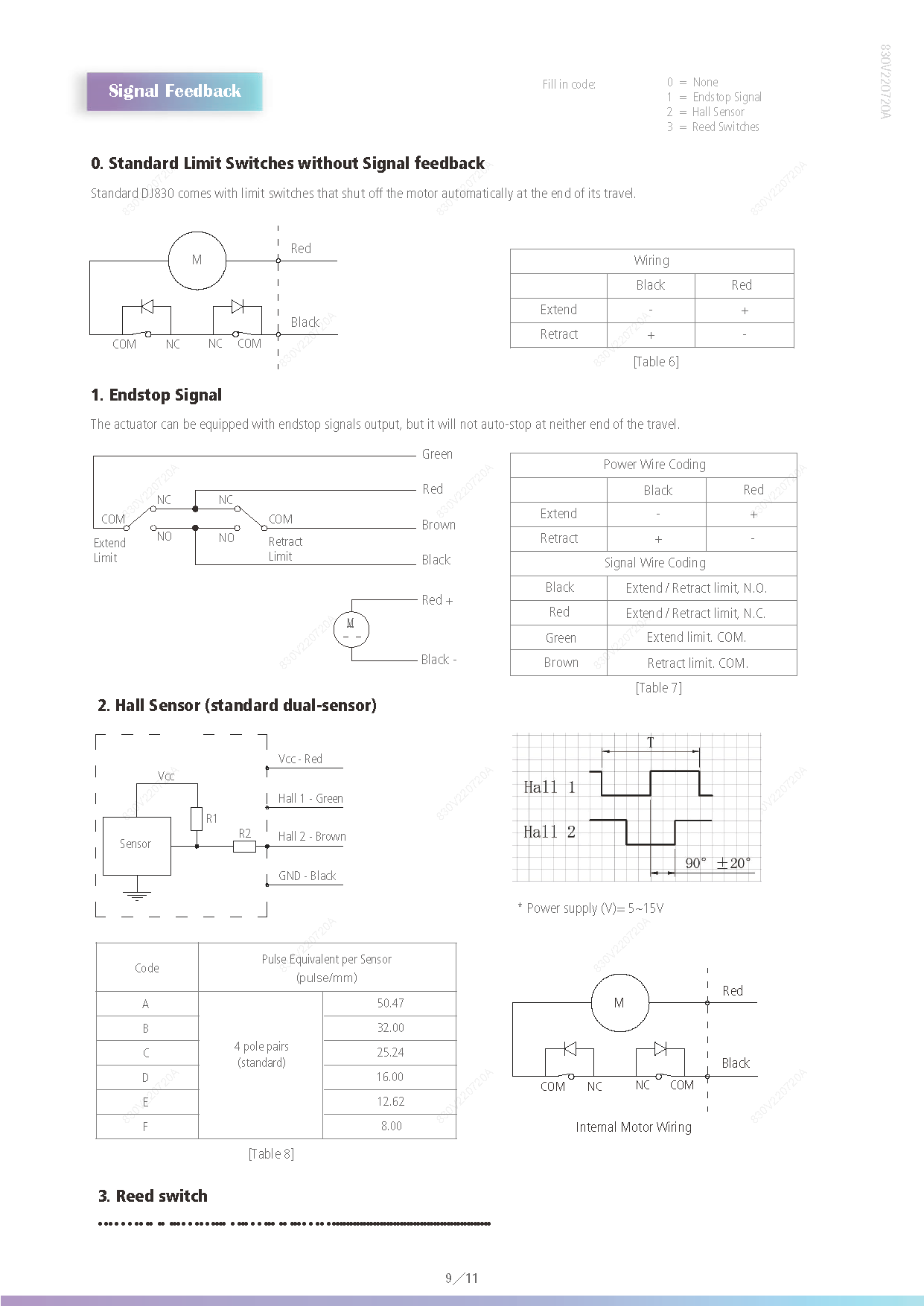

    • Position Feedback: Hall effect sensor, reed switches, or end-stop signal.
