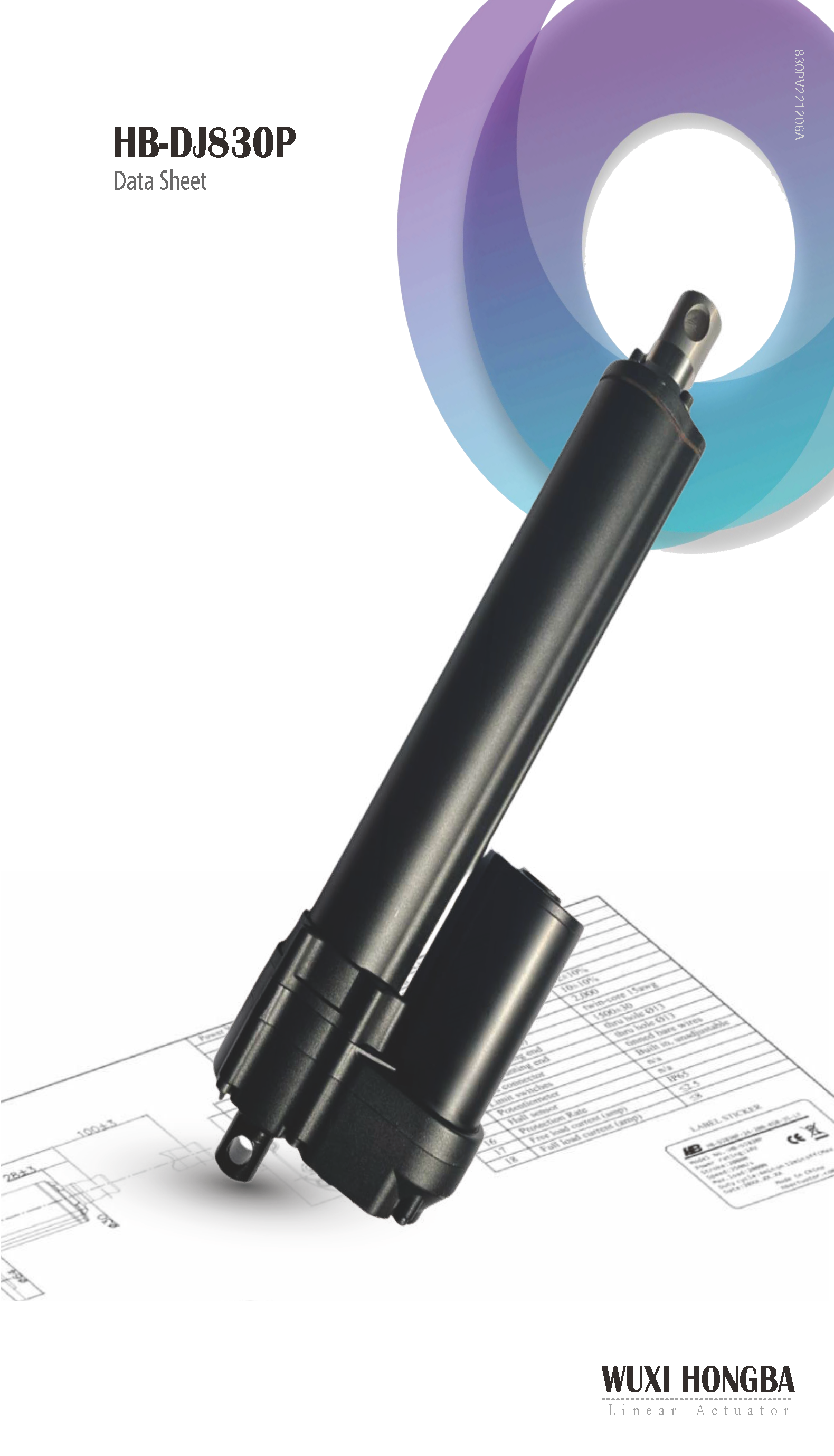

HB-DJ830P Linear Actuator (Free 3D Prints)
Speed: 5.5–35 mm/s,
Customizable travel itinerary: 50–1000 mm,
Voltage: 12V, 24V, 36V, 48V DC brushed motors,
Operating conditions: IP65, duty cycle 25%,
Operating temperature: low temperature -10°C or -40°C, high temperature 65°C.
Position feedback: Hall sensors, reed switches, limit signals,
Supports both electric and manual operation.
Keywords:
HB-DJ830P Linear Actuator (Free 3D Prints)
- Product overview
- Parameter
- 3D drawing
-
- Commodity name: HB-DJ830P Linear Actuator (Free 3D Prints)
- Commodity ID: 1051780227736100864
- 下载中心: 下载中心
Load: 2000 N–7000 N, <br/> Speed: 5.5–35 mm/s, <br/> Customizable travel itinerary: 50–1000 mm, <br/> Voltage: 12V, 24V, 36V, 48V DC brushed motors, <br/> Operating conditions: IP65, duty cycle 25%, <br/> Operating temperature: low temperature -10°C or -40°C, high temperature 65°C. <br/> Position feedback: Hall sensors, reed switches, limit signals, <br/> Supports both electric and manual operation.
Key words:- Linear actuator
- high temperature
- DC
- 50–1000 mm
- model
- 2000 N–7000 N
- load
- electric linear actuator
- 12 V
- 24 V
- Hall sensor
-
-
